Gardner Denver TEEB_D mud pump

.Gardner Denver TEEB_D mud pump

Fluid End

Qty.          Description     Part No.

1       Fluid Cylinder Assy         PPGD 3PE29B

24    Stud         PPGD79AJ5

12    Nut, Cyl to Frame Stud PPGD 50B34

24    Nut, Valve Cover Stud  PPGD 50B34

12    Stud, Cyl to Frame          PPGD 79AB16

12    Nut, Cyl Stuffing Box     PPGD 50C9

6       Cover Valve    PPGD 4PE147

6       Gasket Valve Cover       PPGD 25AL35

1       Manifold, Suction  PPGD 6PE110

3       Gasket, Manifold TO CYL      PPGD 25BE27

12    Screw, Manifold to Chamber       PPGD 655EF060

2       Flange, Suction       PPGD 64CA11

16    Screw, Manifold Flange         PPGD 655EF100

16    Nut, Manifold Flange Screw         PPGD 50B7

2       Gasket, Manifold Flange       PPGD 25C121N

3       Plug, Manifold        PPGD 64AJ16

Qty.          Description     Part No.

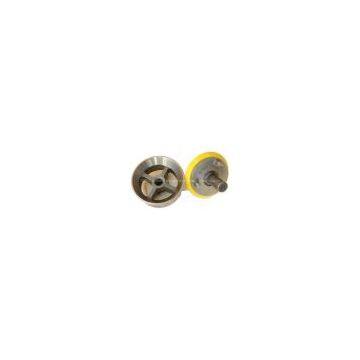

6       Fluid Valve Group PPGD 208VWF482A

6       Valve-Fluid     PPGD PT206

6       Seat          PPGD200VWF039

6       Spring      PPGD78H22

6       Cage-Valve     PPGD 200VWF054

Fluid End Delrin DiscFluid ValveS for Medium Pressure Cast Aluminum Bronze Fluid Cylinders Suction& Discharge Valve

TEEB_D Fluid EndDelrin Disc Fluid ValveS for Medium Pressure Cast Aluminum Bronze FluidCylinders Suction & Discharge Valve

Qty.          Description     Part No.

6       Fluid Valve Assy Alum. Bronze     PPGD 200VLF482

6       Fluid Valve Assy SS         PPGD 201VLF482

6       Fluid Valve Assy Monel         PPGD 202VLF482

6       Retainer Alum Bronze  PPGD 2010585

6       Retainer SS     PPGD 2010586

6       Retainer Monel      PPGD 2010587

6       Fastener PPGD2010598

6       Plug Thread Lock   PPGD 2010602

6       Spring (Inner)         PPGD 2010605

6       Spring (Outer)        PPGD 2010608

6       Disc Valve        PPGD 2010612

6       Seat Valve Alum Bronze        PPGD 2010629

6       Seat Valve SS PPGD 2010630

6       Seat Valve Monel  PPGD 2010631
