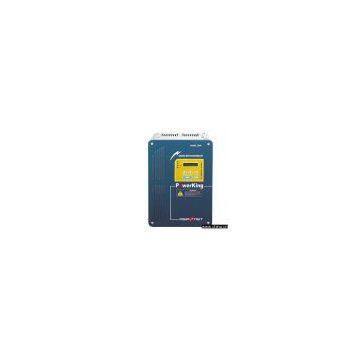

Sell Motor Power Saving Controller

Place of Origin	China

Model No.:PK-IMS
Product Origin:China
Brand Name:AsiaNet
Price Terms:
Payment Terms:T/T
Certification:CCC
Description:Product information: 1) New generation motor power saving control product 2) Uses digital control techniques based on MPU 3) Adjusts voltage and current of the motor in running state dynamically via built-in specialized power saving optimal control software 4) Can guarantee motor output torque matches load requirements precisely (on condition the rotating speed of the motor will not be changed) 5) Avoids power wasting due to unnecessary output 6) Outstanding power saving function 7) Energy saving rate up to 40% 8) Totally digital control via MPU control circuit 9) Startup voltage: adjustable initial startup voltage (0 - 50% of supply power voltage) 10) Impulse startup: it provides voltage level close to direct startup voltage in a short period of time 11) Acceleration: ramp ascend time from 2 - 80sec (adjustable to 600sec, optional) 12) Deceleration: ramp descend time from 0 - 10sec (adjustable) 13) Final voltage (torque): from 0 - 35% of power supply voltage (adjustable) 14) Current limitation level: 100 - 500% of nominal current (adjustable) 15) Motor protection: via monitoring over load and voltage 16) Assistant output: assistant contact point with control bypass contactor Main characteristics: 1) Diagnosis: failure status and information displayed on 32bit LCD screens, 4 LED indicators 2) Startup voltage time: 0 - 40sec (adjustable) 3) Bi-ramp: can be used for bi-speed motor or reverse rotate motor control (optional) 4) Options: specification can be up to 900A, adaptive voltage can be as high as 1,000V a) Dynamic rapid braking b) Speed feedback can be used for linear acceleration ramp c) Cabinet with any IP protection class d) RS-232/485S communication interface Applicable object and area: 1) Suitable for power saving control of asynchronous induction motors 2) Can be used widely in different power equipment and mechanical devices 3) Power saving effect will be more noticeable if it is used in working conditions under which load changes frequently or does not work in full load but with constant rotating speed
