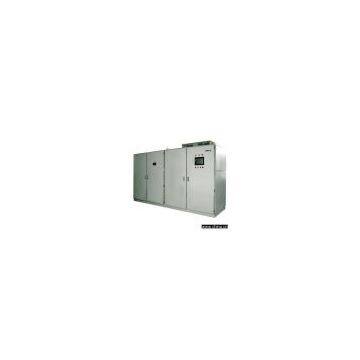

Sell High Voltage Power Efficiency Control System

Place of Origin	China

Model No.:PowerLogix-HV
Product Origin:China
Brand Name:AsiaNet
Price Terms:
Payment Terms:T/T
Certification:CCC
Description:General product information: 1) Latest developed multifunctional high-voltage power efficiency product 2) For high voltage motors 3) Uses an advanced topology structure and optimized space vector control sine wave PWM modulation techniques 4) High performance IGBT power component 5) High reliability and excellent performance 6) Easy operation and can be used for speed-adjustment, power saving, soft startup and intelligent control Small input pollution: 1) By phase-shifting on the isolated transformer quadratic coil of the input, our "PowerLogix-HV" provides power to the power component 2) Its unique design eliminates most of the harmonic currents caused by single power units and decreases the generation of line-side harmonic waves 3) The content of electrical network harmonic wave voltage and harmonic current caused by "PowerLogix-HV" can meet the strictest requirements for harmonic waves in EEE 519-1992 and GB/T 14549-93 standards 4) Does not require installation of input filters and it can protect the surrounding equipment from the interface of harmonic waves 5) Power factor is larger than 0.97 in the normal speed-adjustment range, therefore, there is no need for power factor compensation capacitance and reactive input and power supply capacity will be decreased Perfect output waveform: 1) Perfect output waveform of the shape close to sine waves, no additional motor heating and torque ripple caused by harmonic waves 2) Does not need output filter, no damage to cable and motor 3) Can drive normal high voltage motor without increasing motor temperature and decreasing motor capacity 4) No length limitation for motor cables 5) Protects motor insulation motor from dv/dt stress damage 6) Will not shorten the lifespan of equipment due to harmonic wave moment Visual user interface: 1) "PowerLogix-HV" uses the WINDOWS NT operation system 2) 12" real color LCD display, direct operation on touch screen, user-friendly operation interface 3) Chinese character expression and graph indicator, easy learn and easy use 4) Large screen display, simultaneously setting for one group or several groups of parameters 5) No tiresome parameters code number, the parameters setting is accurate, straight forward and convenient 6) Running parameters can be displayed on the same screen, clearly displayed 7) Touch-screen operation locking 8) Running parameters: auto-record of every operation 9) Can print output record report forms 10) Able to display the real-time wave input, output voltage or current 11) Able to record and keep as much as more than 100 previous failures 12) PID parameters adjust on-line when running in close-loop mode Applicable domain: 1) Used for the speed-adjustment, power saving, soft startup and intelligent control of high voltage motors in many industries including the petroleum industry, chemical industry, also in tap water facilities, steam power plants, mines and others 2) Thermal power generation: draft fan, induced draft fan, mill exhauster, circulation 3) Water pump, feed pump, condensate pump, heat network water supply pump, heat network back water pump 4) City water supply: water supply pump 5) Petroleum: water injection pump, crude oil pump 6) Chemical industry: compressor, fan, circulation water pump, ice machine 7) Mine: sludge pump, ventilator, ball mill 8) Metallurgy: water supply pump, dust elimination fan, induced draft fan, oxygen generator 9) Cement: water pump, Induced draft fan, fan, dust elimination fan, lapping machine 10) Others: industries including medicine, paper manufacturing, and sewage disposal
