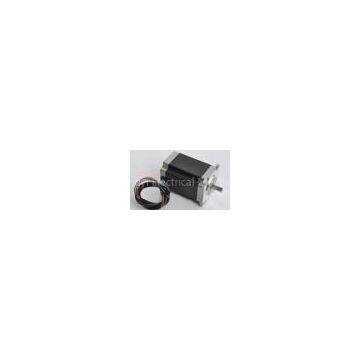

12V four Phase and industrial 42BYGH Stepper Motor, 42BYG 42MM nema 17 stepping motors with 4.4 kg.c
- T/T L/C D/P D/A
- 7 days
You May Like
-
42mm and 4 Wire / 6 Wire 42BYGH Stepper Motor, Nema 17 and 4 Phase 0.3A 12 volt stepper motor for em
-
0.3A 12V and Nema 17 42BYGH Stepper Motor, 4 Phase and 4 wire / 6 Wire industrial high speed stepper
-
Nema 17 and 4 Wire / 6 Wire 42BYGH Stepper Motor , 42mm and 4 Phase 0.3A 12 volt stepper motor for e
-
4 Phase and 4 wire / 6 Wire 42BYGH Stepper Motor, 0.3A 12V and Nema 17 torque stepper motors
-
Custom 4 wire / 6 wire 42BYGH Stepper Motor, 1.2 A 12V, 4 Phase and 42mm nema 17 stepping motor
-
4 Wire and 4.4A 220V Nema Stepper Motor, nema 34 and 86BYG450 4 Phase industrial Integrated torque s
Product Details
| Brand Name | CW | Place of Origin | China | |
| Model Number | 42BYG250-47 |
Product Description
Certification:CE, ISO9000, SGS
12V four Phase and industrial 42BYGH Stepper Motor, 42BYG 42MM nema 17 stepping motors with 4.4 kg.cm Holding Torque
Description
General Specifications
Step Agle-----------------------------1.8°±5%
Insultion Resistant--------500V? DC? 100MΩ? Min
Insultion Strength--------50Hz? 1Minute? 500V Min
?Ambient Temperature ----------—20℃~+50℃
Temperature Rise--------------------------80℃ Max.
Radial Play-------------------------------0.02mm Max.
End Play---------------------------------------0.1-0.3mm
Technical Data Sheet
|
Model |
Step Angle (°) |
Motor Length (mm) |
Rated Current? (A) |
Phase Resistance (Ω) |
Phase Inductane (mH) |
Holding Torque (kg.cm) |
Lead Wire (No.) |
|
42BYG450-34 |
0.9/1.8 |
34 |
0.3 |
40 |
28 |
2 |
4/6 |
|
42BYG450-40 |
0.9/1.8 |
40 |
0.8 |
7.6 |
6.5 |
3 |
4/6 |
|
42BYG450-44 |
0.9/1.8 |
44 |
0.6 |
17 |
13.8 |
3.8 |
4/6 |
|
42BYG450-44 |
0.9/1.8 |
44 |
1 |
5.6 |
4.5 |
4 |
4/6 |
|
42BYG450-48 |
0.9/1.8 |
48 |
1.2 |
3.3 |
3.2 |
3.8 |
4/6 |
|
42BYG250-48 |
0.9/1.8 |
48 |
1.2 |
3 |
4.3 |
4.4 |
4/6 |
|
42BYG450-60 |
0.9/1.8 |
60 |
1.2 |
5.5 |
6.4 |
6 |
4/6 |
Structure Chart
Competitive Advantage
The above are just representative products,the derivative can made according to customs demands.
