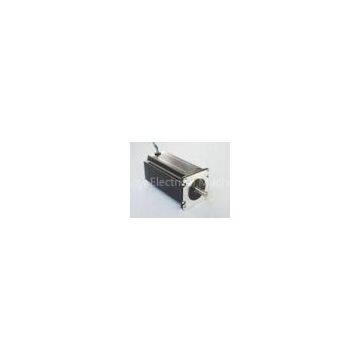

1.8 degree and 1A 24V 4 Wire Stepper Motor, 57mm nema 23 and 57BYG250 Two Phase hybrid stepper motor
- T/T L/C D/P D/A
- 7 days
You May Like
-
3A 36V and 57BYG 4 Phase 4 Wire Stepper Motor, 57mm and nema 23 driver steper motor with 7kg.cm Hold
-
57MM Nema 23 and 1.5A 36V 4 Wire Stepper Motor, 57BYG 4 Phase Integrated hybrid step motor with 14.8
-
0.9 3A 48V nema 23 and 4 wire / 8 wire / 6 wire Stepper Motor, 57BYG450 4 Phase and industrial Torq
-
25 kg.cm Holding Torque and 57BYG four Phase 4 Wire Stepper Motor, 57mm nema 23 and 36V integrated d
-
1.8 degree 24V / 36V / 48V and nema 23 4 Wire Stepper Motor, 57BYG250 2 Phase stepping motors for pa
-
4 wire / 6 wire, 0.6A 12V and 1.8 nema 11 Hybrid Stepper Motor, 28BYG250 28mm and 2 Phase stepping
Product Details
| Brand Name | CW | Place of Origin | China | |
| Model Number | 57BYG250-76 |
Product Description
Certification:CE, ISO9000, SGS
1.8 degree and 1A 24V 4 Wire Stepper Motor, 57mm nema 23 and 57BYG250 Two Phase hybrid stepper motors
Description
Detailed Technical Date Sheet
|
Model |
Step Angle(°) |
Motor Length (mm) |
Rated Current? (A) |
Phase Resistance (Ω) |
Phase Inductane (mH) |
Holding Torque (N.cm Min) |
Lead Wire (No.) |
|
57BYG450-40 |
0.9/1.8 |
41 |
2 |
1.5 |
1.4 |
3.5 |
4/6/8 |
|
57BYG450-50 |
0.9/1.8 |
51 |
3 |
1 |
1.5 |
7 |
4/6/8 |
|
57BYG250-56 |
0.9/1.8 |
56 |
1 |
1.4 |
4.5 |
6.5 |
4/6/8 |
|
57BYG450-56 |
0.9/1.8 |
56 |
3 |
0.9 |
1.3 |
9 |
4/6/8 |
|
57BYG450-76 |
0.9/1.8 |
76 |
1.5 |
5 |
1.05 |
14.8 |
4/6/8 |
|
57BYG450-84 |
0.9/1.8 |
84 |
3 |
1.1 |
2.5 |
16 |
4/6/8 |
|
57BYG450-102 |
0.9/1.8 |
102 |
3 |
1.5 |
3.1 |
23 |
4/6/8 |
|
57BYG450-112 |
0.9/1.8 |
112 |
3 |
1.8 |
3.8 |
25 |
4/6/8 |
Genaral Specification
Step Angle ------------------- 1.8°±5°
Temperature Rise ------------- 80℃max
Ambient Temperature -------- -20℃~+50℃
Insulation Resistance--------- 100 MΩ Min. , 500VDC
Dielectric Strength: ------------ 500VAC for 1minute
Shaft Radial Play --------------- 0.02Max. (450g-load)
Shaft Axial Play ----------------- 0.08Max. (450g-load)
Detailed Structure Chart
?Competitive Advantage
The above are just representative products,the derivative can made according to customs demands.
