860 960MHz UHF Metal Tag, Ceramic Material (RCC6004)

Metal Tag(RCC6004)

Material: Ceramic

Frequency: 860～960MHz

Chip: NXP G2XM (optional)

EPC Memory: 240 bits

User Memory: 512 bits

Introduction:

This tag is designed on ceramic base material. It solves the problem that tags can not be attached to metal surface(Reading distance even will be father when it is attached to metal surface). At the same time, it can work outside in the hard environment. It complaints with EPC C1G2 (ISO18000-6C), operating frequency is 860～960MHz (It can be used worldwide). Each tag has a unique ID and stores user data.

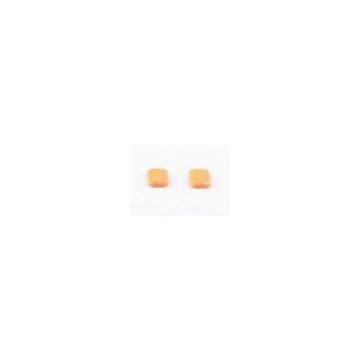

Image:

Physical Features:

Product Model: RCC6004

Material: Ceramic

Dimensions: 12×7×1.2mm

Weight: 0.7g

Color: Orange

Working Temperature: -40℃～150℃

RFID Features:

Protocol: EPC C1G2 (ISO18000-6C)

Frequency: 860～960MHz

Chip: NXP G2XM (optional)

EPC Memory: 240 bits

User Memory: 512 bits

Read Range: Stationary reader: Over 0.8m (30dBm)

?????????? Handheld reader: Over 0.3m (28dBm)

Other Features:

Environmental: ROHS compliant

Data storage: >10 years

Re-write: 100,000 times

Fixture: 3M adhesive

Customization: Company logo print

Application: Assets statistics management, small equipment management, pharmaceutical tracking, firearms management, gun tracking, surgical instruments tracking, etc.
