860 960MHz Ceramic Rfid Metal Tag With ALIEN HIGGS 3 Chip (RCC6006)

Metal Tag(RCC6006)

Material: Ceramic

Dimensions: 25×9×3mm

Frequency: 860～960MHz

Chip: ALIEN HIGGS 3 (optional)

Application: Inventory management, small equipment and facility management, control board management, vehicle management, etc.

Introduction:

This tag is designed on ceramic base material. It solves the problem that tags can not be attached to metal surface(Reading distance even will be father when it is attached to metal surface). At the same time, it can work outside in the hard environment. It complaints with EPC C1G2 (ISO18000-6C), operating frequency is 860～960MHz (It can be used worldwide). Each tag has a unique ID and stores user data.

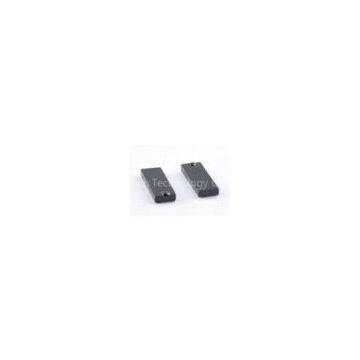

Image:

Physical Features:

Product Model: RCC6006

Material: Ceramic

Dimensions: 25×9×3mm

Weight: 3.8g

Color: optional

Working Temperature: -40℃～150℃

RFID Features:

Protocol: EPC C1G2 (ISO18000-6C)

Frequency: 860～960MHz

Chip: ALIEN HIGGS 3 (optional)

EPC Memory: 96 bits, maximum 480 bits

User Memory: 512 bits

Read Range: Stationary reader: Over 3m (30dBm)

?????????? Handheld reader: Over 1m (28dBm)

Other Features:

Environmental: ROHS compliant

Data storage: >10 years

Re-write: 100,000 times

Fixture: 3M adhesive

Customization: Company logo print

Application: Inventory management, small equipment and facility management, control board management, vehicle management, etc.
