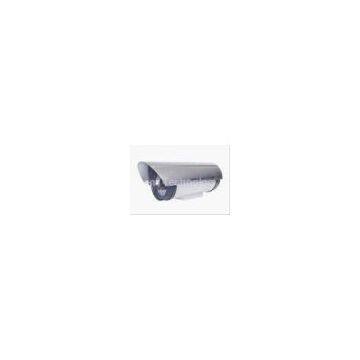

Low Illumination 300mA 20m Digital Auto Control ir 24 PCS 1/3 Sony 700TVL CCTV Camera Color CCD Came

Model No

SH-IRI70

SH-IRI60

SH-IRI60C

SH-IRI48C

SH-IRI42

SH-IRI42L

Image Sensor

1/3\"Sony?

1/3\"Sony?

1/3\"CMOS?

1/3\"CMOS?

1/3\"Sony?

1/4\" Sharp

ICX673BK CCD

ICX639BK CCD

PC1089

BF3003

ICX633BK CCD

RJ2421FA CCD

Horizontal Resolution

700TVL, Low Illumination, DWDR, OSD, DNR, PM, MD

600TVL, Low Illumination, DWDR, OSD, DNR, PM, MD

600TVL

480TVL

420TVL

420TVL

Pixels

?PAL: 976 (H)×494(V)

PAL: 795 (H)×596(V)

PAL: 500(H)×582(V)?

NTSC : 976 (H)×582 (V)

NTSC: 811 (H)×508 (V)

NTSC: 510(H)×492(V)

Television Standards

PAL/ NTSC

IR LED

24PCS of ￠5mm IR LED

IR Distance

20m

Lens

Board Lens 3.6mm/F2.0

Sync System

Internal

Usable Illumination

0.001Lux/F2.0

0.005Lux/F2.0

IR Power On

CDS Auto Control

S/N Ratio

≥65dB (AGC OFF)

≥54dB (AGC OFF)

≥48dB (AGC OFF)

Gamma Correction

0.45

Video Output

Composite Signal (1.0Vp-p, 75Ω)

Scanning System

PAL: 625 Lines, 50 Field/Sec;?? NTSC: 525 Lines, 60 Field/Sec

Electronic Shutter

Auto:??? PAL 1/50-1/100,000Sec;?? NTSC 1/60-1/100,000Sec

Operation? Temp

-10°C ~ +50°C,? ?RH: 95% Max

Storage?Temp

-20°C ~ +60°C,? ?RH: 95% Max

White Balance

Auto

Power Supply

DC12V 300mA

Dimension

155(W)×50(H)×55(D)mm

Weight

550kg
