Home > Products > IR Dome Cameras > Auto tracking 1/3"SONY Super HAD II CCD 630TVL Color 3D-DNR Smart IR Dome closed circuit security ca

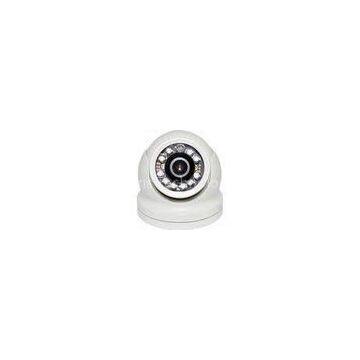

Auto tracking 1/3"SONY Super HAD II CCD 630TVL Color 3D-DNR Smart IR Dome closed circuit security ca

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	AnQuans		Place of Origin	China
Model Number	YR-520C

Delivery Time:7-20 Days
Certification:CE

Quick Details

Auto tracking 1/3\"SONY Super HAD II CCD 630TVL Color 3D-DNR Smart IR Dome closed circuit security cameras

Specifications

Dome Camera
630TVL Color, 700tvl B/W
D-WDR/ OSD/ 3D-DNR/ HLM
Smart-IR/ Motion Detection
Privacy Mask, Second Video Test

Features:

1/3\"SONY Super HAD II CCD

630TVL Color,700TVL B/W

D-WDR/OSD/3D-DNR/Sens-Up(X512)/Smart-IR

Motion Detection/Privacy Mask/High Light Mask

IR Level, Second Video Test

30Pcs φ5 IR leds, IR Distance:25-30M

4-Axis rotation gimbal design

IR CUT Filter Optional

Built-in 4-9mm manual iris lens ?(2.8/4/6/8/10/12/16mm 9-22MM,2.8-12MM 3.6-16mmOptional)

Technical Specification:

Model	? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? HP-630VH-IR
Imaging Sensor	1 / 3\" SUPER HAD II CCD
Pixel	PAL:795(H) x 596(V);NTSC:811(H) x 508(V)
Signal System	PAL/ NTSC
Syn. System	Internal Synchronization
Shutter speed	PAL:1/50~1/100000s;NTSC:1/60~1/100000s
S/N Ratio	More than 50dB(AGC OFF)
Video Output	1.0Vp-p, 75 ohms BNC
Horizontal resolution	Color 630TVL, B/W 700TVL
Minimum Illumination	Color 0.1Lux (F1.2, 50IRE, AGC ON) B/W: 0.001Lux (F1.2, 50IRE, AGC ON)
D/N Switch	Auto/Color/B/W/External Control
Brightness Switch	Color to B/W & B/W to Color for option
D/N Switching Time	0s~10s
Title setting	16 characters
Title Position	Any position on the Screen
Image Brightness	0~99 adjustable
AGC	Off/12db/24db/36db
