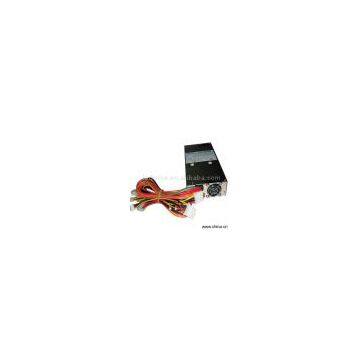

Sell 1U (350W) USP

Model No.:WT-5152 (350W)
Product Origin:China
Brand Name:WISEFAME
Price Terms:FOB Shenzhen
Payment Terms:T/T or L/C
Certification:CCC, CE, CB, FCC, UL, TUV, GS, CUL
Description:Product Name: 1U (350W) USPModel Number: WT-5152 (350W)Place of Origin: ChinaFeatures: 1) Input: a) Voltage: 11V~240V b) Frequency: 47~63Hz c) Current: 3A (max.) at 230VAC, 6A (max.) at 115VAC d) Inrush current: <80a at 230VAC cold start at 25 degrees e) Efficiency: 65% min. 2) Output 300W a) Voltage: +5V, +3.3V, +12V, 1+12V, -12V, +5VSB b) Max. load: 25A, 20A, 12A, 15A, 0.5A, 2.0A c) Min load 5.0A, 3.5A, 3.0A, 1.0A, 0.1A, 0.1A d) Ripple: 50mV, 50mV, 120mV, 150mV, 150mV, 50mV e) Noise: 100mV, 100mV, 200mV, 200mV, 200mV 100mV f) Power good signal: 100ms~500ms (80% full load) g) Power fail single: 0.1ms~100ms (80% full load) h) Hold-up time: 16ms min. i) Line regulation: 9% max. 3) Protection a) Over load: 120%~160% over load b) Sense level: +5V, 6.5V/+12V, 15V+3.3V, 4.3V c) Short circuit: except for +5VSB all output 4) Hi-pot voltage 1,500VAC, time 2-3 sec. cut off current 10mA max. Packing: Standard packing
