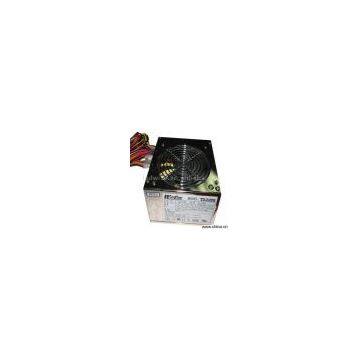

Sell Power Supply (350W)

Model No.:WT-4100
Product Origin:China
Brand Name:
Price Terms:FOB Shenzhen
Payment Terms:T/T or L/C
Certification:
Description:Product Name: Power Supply (350W)Model Number: WT-4100Place of Origin: ChinaFeatures: 1) Input: a) Voltage: 95~132V/180~264V b) Frequency: 47~63Hz c) Current: 3A (max.) at 230VAC, 6A (max.) at 115VAC d) Inrush current: <80a at 230VAC cold start at 25 degrees e) Efficiency: 70% min. at full load 230VAC / 50Hz, 65% min. at 450W load 20VAC / 50Hz 2) Output: 450W a) voltage: +5V, +3.3V, +12V, +12V, -12V, +5VSB b) Max. load: 25A, 20A, 12A, 15A, 0.5A, 2.0A c) Min. load: 5.0A, 3.5A, 3.0A, 1.0A, 0.1A, 0.1A d) Ripple: 50mV, 50mV, 120mV, 120mV, 150mV, 50mV e) Noise: 100mV, 100mV, 200mV, 200mV, 200mV, 100mV f) Power good single: 100ms~500ms (80% full load) g) Power fail signal: 0.1ms~100ms (80% full load) h) Hold-up time: 16ms min. i) Line regulation: 1% max. 3) Protection: a) Over load: 120%~160% b) Sense level: +3.3V +5V +12V or over voltage: 4.3V max. / 6.8V max. /15V max. c) Short circuit: except for +5VSB all output 4) Hi-pot voltage 1,500VAC, time 2-3 sec. cut off current 10mA max. Packing: Standard packing
