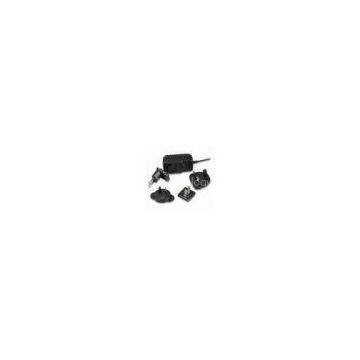

15W FCC class 2 build-in EMI LED switching power adapters for PDA, mobile phones

Short circuit protection.
Over voltage protection.
Over current protection.
Thermal shutdown capability

PRODUCT HIGHLIGHT.
?Complete, inexpensive, self-contained regulated power source
?Super power supply, fixed frequency control circuit guarantees Stable , long-lasting output required by any mobile Electronics, such as mobile phones , PDA, Digital camera , CDMA Digital phones, Walkie-talkie, ester machine, HUB, Modem, Scanner, Printer and much more.
?Extra safe design , all with their respective safety approvals .
?? Ultra low no-load /standby power consumption, meeting EC 2005 green power requirements.
?Light , sleek , and compact design.
?On-line LED power indicator.
?High efficiency circuitry that generates little heat
?B urn-in EMI filter.

PROTECTION:
?Short circuit protection.
?Over voltage protection.
?Over current protection.
?Thermal shutdown capability.

RELIABILITY:
?Burn-in : 100% full load , 40 ±5°C, 4Hrs min. .
?Leakage Current : 0.25mA max. at 254Vac.
?Withstanding Voltage :(between primary & secondary) 3000Vac 1 minute 10mA max..
?MTBF : meet MIL-HDBK-217F over 50K hours, full load, 25 °C

?SAFETY APPROVALS:
?UL60950 3 rd edition CAN/CSA C22.2 NO.60950
?EN60950:2000
?CE(Low Voltage Directive)
?AS/NZS 60950:2000
?PSE IEC60950
?GB4943-2001
EMISSIONS:
?FCC Part15 class B
?EN55022 class B
?AS/NZS3548, AS/NZS4251.1 class B
?VCCI class B
?CNS13438 class B
?GB9254-1998/GB17625.1-2003
?CISPR22 class B
IMMUNITY:
?EN55024/A1:2001

?Electrostatic discharge:61000-4-2
?Radiated electromagnetic fields:61000-4-3
?Fast transients(burst):61000-4-4
?Surge transients:61000-4-5
?Conducted disturbance:61000-4-6
?Voltage dips, interruptions & variations:61000-4-11
