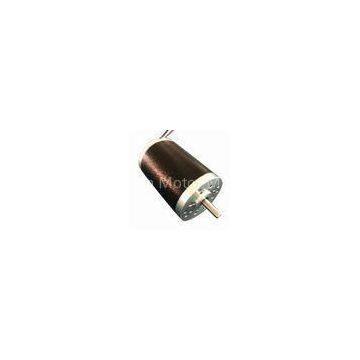

63ZYT03Z PM 3000 - 4000 Rpm100w Brushed DC Electric Motor
- T/T L/C D/P D/A
- 7 days
You May Like
-
63ZYT01B High Torque High Speed Brush 12v 24v DC Motor (9500rpm, 0.2Nm, 200w)
-
54ZYT-14206 SERIES 2 Pole Brushed DC Electric Motor 2800rpm, 75w
-
63ZYT-12V High Torque Permanent Magnet Brush 12v Brushed DC Electric Motor
-
35mm High Torque Hybrid Stepper Motor 0.9 Nema 14
-
Step Angle 0.9 42mm Nema 17 High Torque Hybrid Stepping Motor
-
57mm Hybrid Stepping 0.9 Nema 23 Stepper Motor
Product Details
| Brand Name | Smart Automation | Place of Origin | China | |
Product Description
63ZYT03Z PM 3000 - 4000 rpm100w Brushed DC Electric Motor
dc motor
rated vol, 12v 24v 40v
rated speed, 3000~4000rpm
rated torque, 0.27Nm
CE and ROHS
Motor technical parameter
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
?CE and ROHS certified
Options:
?Customized voltage, winding, shaft, mounting, and lead configurations
?EMI/RFI suppression circuit; Thermal protection
?High temperature Class H insulation
|
Model |
63ZYT03Z |
|||
|
Rated voltage |
V dc |
12 |
24 |
40 |
|
Continuous rated speed |
rpm |
3000 |
3350 |
3450 |
|
Continuous rated torque |
mN.m |
240 |
270 |
270 |
|
Continuous current |
A |
8.6 |
4.9 |
3 |
|
Starting torque |
mN.m |
2050 |
2110 |
2110 |
|
Starting current |
A |
60 |
40 |
28 |
|
No load speed |
rpm |
3500 |
3650 |
3600 |
|
No load current |
A |
0.8 |
0.4 |
0.28 |
|
Demagnetization current |
A |
66 |
33 |
20 |
|
Rotor inertia |
Gcm2 |
750 |
750 |
750 |
|
Motor length (?L) |
Mm |
125 |
125 |
125 |
|
Weight of motor |
g |
1350 |
1350 |
1350 |
