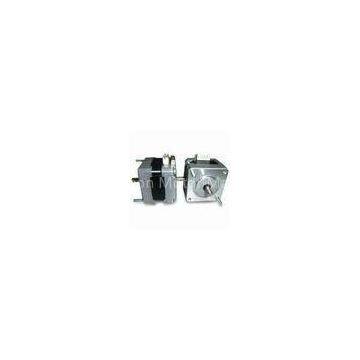

Custom 35mm High Torque Hybrid Stepper Motor; Nema 14 Step Motor

Item

Specification

Step Angle Accuracy

±5%(full step,no load)

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80℃Max.(rated current,2 phase on)

Ambient Temperature

-10℃-+50℃

Insulation Resistance

100MΩMin.500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.06Max.(450 g-load)

Shaft Axial Play

0.08Max.(450 g-load)

Model No.

Rated Voltage

Current
/Phase

Resistance
/Phase

Holding Tprque

#Of Leads

Rotor Inertia

Weight

Length

Single Shaft

Double Shaft

V

A

Ω

Oz-in

g-cm

g-cm2

Kg

mm

SM35HT20-0404A

SM35HT20-0404B

10

0.4

25

7

500

4

8

0.1

20

SM35HT26-0804A

SM35HT26-0804B

3.8

0.8

4.8

11

800

4

10

0.12

26

SM35HT28-0754A

SM35HT28-0754B

3.2

0.75

4.3

11

800

4

10

0.14

28

SM35HT28-0504A

SM35HT28-0504B

10

0.5

20

14

1000

4

10

0.14

28

SM35HT34-0406A

SM35HT34-0406B

10

0.4

25

17

1200

6

14

0.17

34

SM35HT36-1004A

SM35HT36-1004B
