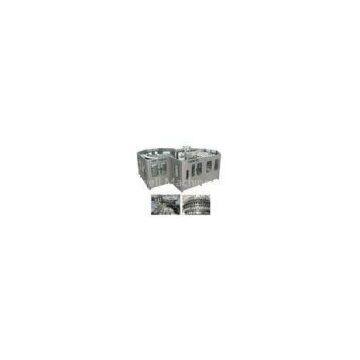

15KW Carbonated Soft Drink PET or Glass Bottle Monoblock Rinsing Filling Machine

15KW Carbonated Soft Drink PET or Glass Bottle monoblock rinsing filling capping machine

3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of carbonated soft drinks and soda water, on the basis of introducing, digesting and absorbing advanced technology from Germany and Italy.

Applications:

PET bottles with all volumes and shapes for carbonated drinks, CSD, cola, soda water, energy drinks, kvass, beer, etc.

Specifications:

Competitive Advantage:

Main features

1. Rinser

Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

Rinsing machine adopts Sunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.

Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angle ensures to wash all side of the bottle, and can save the water.

2. Filler

A. Filling valve use isobar machinery valve, High speed and big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable.
B. Main drive adopt gear drive independent, high efficiency ,small noise ,long life ,maintenance-free, transducer can control the main motor speed ,the machine adopt Variable-frequency variable speed, whole operations area ,engine base is stainless steel contain carbon steel.
C. Guide bottle system, simple structure, according to bottle style ,can change
D. The whole machine can be controlled automatically by PLC
E. Filling hydraulic material liquid level height adopt liquid level probe control ,liquid level steady ,filling reliable
F. The machine important parts and electrical elements is import production
G. Filling hydraulic material can be controlled automatically .and have CIP washing connector.

3. Capper

Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. our screw capping has following feature.

Equipment structure
Base
Rotary rinser
Rotary filler
Rotary capper
Bottle infeed and outfeed system
Control

Main configuration
Touch screen: THINGET
PLC program controller: Mitsubishi
Inverter: Mitsubishi
Photoelectrical controller: Autonics
Proximity switch: Autonics
Other electrical components: Schneider
Pneumatic component: Airtac
Water pump: Nanfang
Main motor: Siemens
Bearing: Harbin
