Electric Rotary Bottling of Edible Oil, Syrup Piston Filling Capping Machine Equipment

Brand Name	Sunwell		Place of Origin	China

Delivery Time:7-15days
Certification:CCC, CE, RoHS, UL

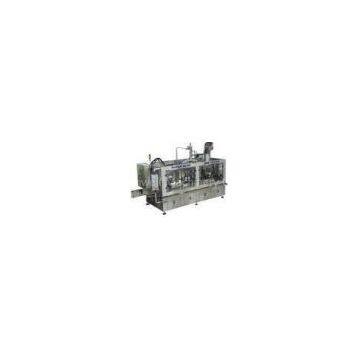

Automated Rotary Bottling of Edible Oil, syrup Piston Filling Capping Machine Equipment

Specifications:

Model	GYH30-6
Number?of?working?positions	filler?30,?capper?6
Capacity	10000BPH?(500ml),?5000BPH?(5L)
Applicable?bottle	diameter?50~200mm,?height?150~360mm
Material?supply?pressure	0.03~0.08?MPa
Vacuum?in?filling?tank	-50~80mbar
Air?supply?pressure	0.6~0.7MPa
Air?consumption	0.5?M3/min
Installed?power?of?motor	5.54Kw
Rated?voltage	380V,?50Hz
Machine?dimension	2740mm×3310mm×2950mm?(L×W×H)
Machine?weight	3200kg

Description:

GYH series is special for edible oil filling, capping and equipped with rotary transmission, PLC and frequency adjuster in speed. It is innovated and designed in the requirement of edible oil technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for edible oil producers.

Applications:

Bottling of edible oil, syrup and high viscous liquids.

Features

Compact structured, good-looking, easy to operate and highly automated. Parts with contact with material are all made of stainless steel of food-grade, no dead angles and easy to clean up. Filling volume is controlled with film valves to ensure accurate filling. High-speed and highly accurate filling valves ensure no loss of liquid at high speed. Liquid buffer element specially designed inside filling valves can eliminate the cutting affection and wallop between liquid and container, easy to eliminate the air bubble in material. Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage. Highly effective cap sorting and feed in system is protective for feed in and cap absence. Equipped with overload system to safeguard machine and operators. Equipped with cap absence detector and bottle jam-up detector, which could stop the monoblock in that case. Equipped with output calculating function for monoblock. Main electronic components (touch screen, PLC and frequency inverter) are imported products.
?

Equipment Structure

Bottle infeed

Bottle infeed by combination of infeed screw and infeed starwheel.
Equipped with bottle jam protection device.

Filling Machine

The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck.
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it starts to fill.
Bottle is conveying by the wheel in the filling part.

Flip (Press-on) Capper

Electronic control system part

The electronic components like PLC and transducer are from Schneider, Mitsubishi, Omron, etc., and the pneumatic devices are also from international famous brands.

Main Specification

Touch screen: THINGET or Weinview PLC program controller: Mitsubishi or Omron Inverter: Mitsubishi or omron Photoelectrical controller: Omron Proximity switch: Autonics Other electrical components: Schneider Pneumatic component: Airtac Main motor: Siemens
