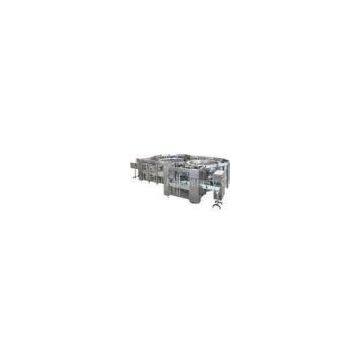

Automatic Still water, pure water, soda water 3L, 4L bottling line equipments machine

Automatic Still water, pure water, soda water 3L, 4L bottling line equipments machine

Specifications:

Description:

The water line is composed of separate rinsing, filling and capping units. It is innovated and designed in the requirement of still pure water and mineral water in big jars, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.

Applications:

Still water, pure water, RO water, mineral water, sparkling water, etc. in 3L, 4L, 5L, 6L, 8L, 10L bottles and jars

Competitive Advantage:

Main features

Rinsing Machine

Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

Rinsing machine adopts our company original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with the angle 15° ensures to wash all side of the bottle, and can save the water.

Filling Machine

The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm.
The filling valve material is SUS304
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it starts to fill.
Bottle is conveying by the wheel in the filling part.

Screw Capping Machine

Screw capping machine is most precision part in the machine, which has a big influence to the goods stability and defective rate. Our screw capping has following feature.
1) Our company import of advanced technology of screw capping, improve the stability and reliability of the screw capping machine. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
2) In the screw capping part, installed photoelectricity control, when it has no cap or the cap is bad, the machine will stop automatically.

Main?Specification
