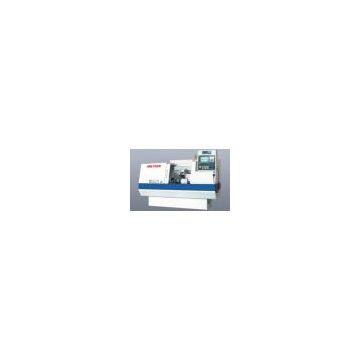

CNC End-Face Cylindrical Grinder (MK1620)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | MK1620 |
Product Description
Main Applications and Structural Features
1.810D double-shaft interlocked CNC system supplied by Siemens company, Germany PLC inside, LCD display.
2. Automatic measure gauge equiped, testing on the line, the closed-cycle.
3. Feed of grinding wheel frame and movement of worktable are driven by ballscrew with AC servo-motors.
4. Flexible and stable feed of grinding wheel is ensured by using THK type rolling guide, worktable is covered with plastics for improving its antivibration and flexibility.
5. Headstock motor adopts AC frequency converter, infinitely varible head spindle speed change.
6. The sleeve of tailstock is with the functiom of hydraulic travel.
7. The separated electrical cabint, oil tank and water tank equipped.
8. All the guides and screws are periodically lubricated in an automatic way.
9. Complete protection cover is equipped, the operation is safe.
Product Table
|
Heigh of center |
125mm |
|
Distance between centers |
520/750mm |
|
Max diameter to be ground |
Φ 200mm |
|
Max length to be ground |
520/750mm |
|
Max. weight of workpiece |
50kg |
|
Max. dimension of grinding wheel |
Φ 500× 80-100× Φ 203 |
|
Linear speed of grinding wheel |
45m/s |
|
Mini. Feed of grinding wheel frame |
0.0005mm |
|
Mini. Feed of worktable |
0.001mm |
|
Grinding wheel motor power |
7.5kw |
|
Total capacity |
10.5kw |
|
Weight of the grinder |
3450/3750kg |
|
Overall dimensions |
2900/3400× 15500× 1800mm |
