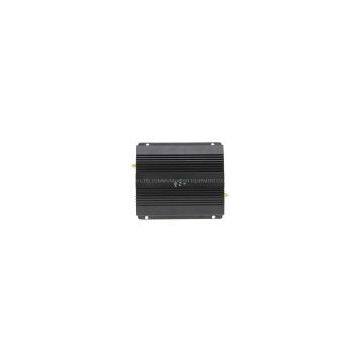

WCDMA Micro Repeater

FOB Price

Negotiable / Kilogram

1 Kilogram(Min.Order)

Supply Ability 0 Kilogram / Kilograms per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

L-TEL

Place of Origin

China

Product Description

Description:

The WCDMA Micro-repeater is specially applied to amplify the WCDMA system signal. This product is also known as “WCDMA mobile phone signal amplifier”, “WCDMA mobile phone partner” and “WCDMA mobile phone signal booster”. This repeater in combination with unique embedded digital processing technology, have anti-jamming and self-excitation elimination functions. In various complicated application environment, the system automatically optimize equipment parameters, make system be in the best working condition without influence the indexes of base station and supply steady and reliable signal for indoor users, make users enjoy high quality individual communication service in the room.

Product Features:

1.In combination with unique embedded digital processing technology, have antenna isolation detection and self-excitation elimination those intelligent anti-jamming functions;

2.Effectively improve the coverage area signal, reduce the mobile phone transmission power, reduce mobile phone radiation to human body, prolong the working time of mobile phone battery;

3.Adopting advanced high-speed digital ALC technology effectively protect equipment and ensure the device has stable output power;

4.Uplink /downlink gain automatic balance linkage adjustment, fool installation;

5.Perfect circuit design and ingenious autonomous aluminum alloy structure design, good effect of shielding isolation, energy saving and good heat dissipation, so as to ensure the equipment long-term stable and reliable working;

6.Stable and reliable electromagnetic compatibility design, dose not interfere with other equipment;

7.with detailed LED indicator lights, stick out a mile to the working state of equipment;

8.In small and beautiful appearance, convenient installation, easy to hide.

Technical specifications:

Working frequency	WCDMA: uplink: 1920-1980MHz, downlink: 2110-2170MHz
Product category	Commercial broadband type
Model	LT-W14-W	LT-W17-W	LT-W20-W	LT-W23-W
Maximum output power(U/D)	10/10dBm	10/15dBm	15/20dBm	17/23dBm
Maximum gain(U/D)	60/60dB	60/63dB	65/68dB	67/70dB
The number of indoor antenna can be equipped with	1-2 root	1-3 root	1-4 root	1-6 root
Area coverage in theory	30-150m2	100-1000m2	200-1500m2	300-2000m2
Applicable occasions	Household, elevator	Household,Small office or villa	Villa, rental house	Villa, small factory or underground parking lot
Input power range	≤-25dBm
Noise factor	≤6dB
Ripple in the band	≤5dB
Time delay	≤1.5μs
Automatic power control	≥ 20dB
Standing-wave ratio (SWR)	≤1.5
Third-order intermodulation	≤-36dBc/30kHz
Stray emission	9KHz--1GHz: ≤-36dBm/100KHz
1GHz--12.75GHz: ≤-30dBm/1MHz
Joint impedance	50Ω
RF joint	SMA-K type
Power supply	AC: 100v-240v DC: 6v
Power dissipation	≤4W	≤4.5W	≤5W	≤6.5W
Size	150×138×32mm	150×138×32mm	150×138×32mm	150×138×32 mm
Weight	750g	750g	750g	750g
Install mode	Wall hanging
Degree of protection	IP40
Ambient humidity	< 90%
Working temperature	-10℃~55℃
Cooling mode	Natural heat dissipation
Average faultless working time	>50000 hour
