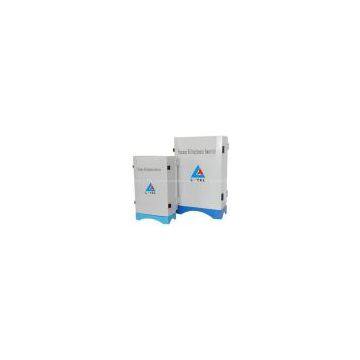

CDMA/WCDMA Frequency Shifting Repeater

Brand Name	L-TEL		Place of Origin	China

The Frequency Shifting Repeaters system (FSR) consists of two parts: Donor Unit and Remote Unit. The Donor Unit receives the downlink signal from base station and shifts it to relevant channel, then transmits to the Remote Unit via relay antenna. The Remote Unit reconverts the received signal to the primary channel and covers the whole coverage areas. The Remote Unit receives the mobile signal from coverage areas and also shifts it to relevant channel, then transmits to the Donor Unit via relay antenna. The Donor Unit will reconvert the signal to uplink signal of the primary channel then send to the base station. Thereby availably expand and fill signal area where mobile communication coverage is blind, enhance communication quality.

Product Category:
Simulate Microwave Remote Repeater (simulate signal amplification), Digital Microwave Remote Repeater (signal digital dispose and amplification, has larger power). Companding Channelized Frequency Shifting Repeater, Simulate Companding Band Selective Frequency Shifting Repeater, Digital Companding Channelized Frequency Shifting Repeater.
According to relay frequency range the FSR can be sorted into In-band FSR and Out-of-Band FSR.
In-band FSR: the link frequency is within the working band of BTS; Out-of-Band FSR: the link frequency is out of the working band of BTS.
As per the method of frequency shifting the FSR can be sorted into Band-selective FSR and channel selective FSR.
Band-selective FSR: shift and amplify the signal frequency in given band.
Channel selective FSR: shift and amplify the signal frequency in given channel (Single Channelized, Dual Channelized, Four-channel Channelized, Six-channel Channelized, and Eight-channel Channelized FSR).
As per the method of source picking up by the Donor Unit, the FSR can be sorted into Cable-Access FSR and Wireless-Access FSR.
Cable-Access FSR: receive base station signal via a coupler link to the base station; Wireless-Access FSR: pick up base station signal in air via Donor Antenna (applicable when the coverage areas under outspread are far away from base station).

Products Series:
Our products, covering 2G (CDMA450, CDMA800, CDMA1900, GSM, EGSM, GSM1800, GSM1900, DCS, PCS, WLAN), 3G (WCDMA, UMTS, CDMA2000), Trunking Communication(TETRA, iDEN, GoTa, GT800, 350Mhz Police Communication), Digital TV Communication(CMMB, DVB-H, T-DMB, S-DMB), Railway Communication System(450MHz Radio Train Dispatch Communication Series, GSM-R Series), Military Communication, FM Broadcast Communication, UHF, VHF Interphone Communication, Marine Communication, Sea Area Coverage Systems, output power can be chose from 0.5W(27dBm) to 60W(48dBm).

Product Features:
1.Modular design, convenient for system upgrade.
2.Advanced and scientific design of low noise circuit, high sensitivity.
3.ALC Automatic Control and reflex protection circuit,prevent accidental burnout.
4.Impossible Self-excited, easy to choose installation site.
5.Achieve relay transmission in long distance and coverage method of one to multiple access.
6.Free setting of FSR frequency, evade the possible co-channel interference or side-channel interference in coverage areas.
7.Simple engineering installation.
8.Perfect Local and remote network monitoring, has initiative alarm function, and parameters can be inquired and set.
9.Supply charging power and backup battery to ensure fault information timely report in time of machine outage, convenient for timely maintain.
10.Crate accord with IP65 protection and high heat-dissipation design, able to work outdoor all-weather.
11.Overall product series and perfect power grade to satisfy different requirements of network coverage.
