HB-3000B Brinell Hardness Tester/Metal Hardness Testing Machine
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | GS | Place of Origin | China | |
| Model Number | hardness tester |
Product Description

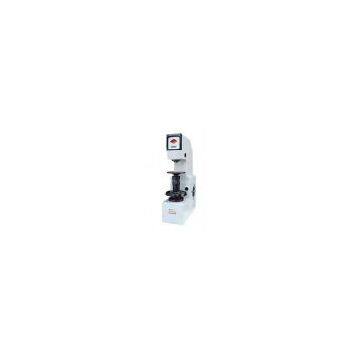

HB-3000B Brinell Hardness Tester
1. Functions
HB-3000B Brinell hardness tester is a testing equipment used to test the Brinell hardness of ferrous metals, nonferrous metals and bearing alloys. It is also used for precision measurement of parallel plane surface and curved surface. The measurement is stable and reliable.
2. Features
1. Lever forcing ensures easy operation;
2. Electronic reversing switch;
3. High-accuracy reading microscope measurement system;
4. Solid construction, good rigidity, high working efficiency, reliable and durable;
5. Strong adaptability to working environment, widely used in the quality monitoring and control in production field;
6. Test accuracy can meet the standards of GB/T231.2, ISO 6506-2 and ASTM E10.
3. Main Technical Parameter:
|
Model |
HB-3000B |
|
Range of measuring |
8-650HBW |
|
Test force |
1.839, 2.452, 7.355, 9.807, 29.42 KN(187.5, 250, 750, 1000, 3000kgf) |
|
Max. height of test specimen |
230mm |
|
Distance between Pressure head center and machine wall |
120mm |
|
Power supply |
AC 380V/220v 50/60HZ |
|
Dimension |
700 x 268 x 842mm |
|
Weight |
About 210kg |
4. Main accessories
|
Accessories |
Quantity |
|
Large test set |
1 |
|
Small test set |
1 |
|
V-shaped test set |
1 |
|
Steel ball indenter |
Φ2.5,Φ5,Φ10mm, each one |
|
Standard Brinell hardness blocks |
2 |
|
20-fold reading microscope |
1 |
