2P Front Entry Spring Terminal Blocks, Conductor Ground Terminal Block SP206
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Gray 3P Spring Cage Terminal Block SP206 with 24 - 12 AWG
-
Gray 5 Pole Female MCS Connector With 7.5mm Pitch SP475/SP478
-
3, 6, 20 Pole Right Angle Pin MCS Connector, PCB Connectors SP475/SP478 (Light-Gray)
-
7.5mm Pitch Straight Solder Pin MCS Connector with 100% Protected Against Mismating
-
6, 8, 14 Pole Straight Solder Pin MCS Connector, Feed - Through Plug Connectors SP475
-
8P, 16P, 20P PA66 Insulation Male MCS Connectors With Snap - in mounting Feet
Product Details
| Brand Name | SUPU | Place of Origin | China | |
Product Description

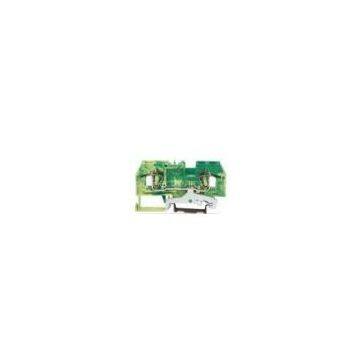

2P Front Entry Spring Terminal Blocks, Conductor Ground Terminal Block SP206
Order No.:206927(Green-yellow)
◆?Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, and maintenance-free, etc.
◆?Operate easily, only need a screw driver.
◆?Print marker card as customer\'s requests.
◆?Mounted on SP35 standard rail (steel or aluminum)
Specifications:
|
Article: |
2-Conductor Ground Terminal Block |
|||
|
Wire Range: |
0.2-6.0mm2/24-12AWG |
|||
|
IEC |
UL |
CSA |
EN |
|
|
Rated Voltage: |
800V |
600V |
600V |
800V |
|
Rated Current: |
41A |
30A |
40A |
41A |
|
Size (mm/in): |
8×74.5×32.5 mm/0.315×2.93×1.28 in |
|||
|
Strip length (mm/in): |
12-13 mm/0.49 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Entry Type: |
Front-entry |
|||
|
Peak Voltage: |
8KV |
|||
|
Weight: |
||||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Green-yellow |
|||
|
Packing: |
100PCS |
Attachment:
|
Picture |
Name |
Order No. |
|
End-and Intermediate |
206121(Gray)/206122(Orange) |
|
|
Adjacent Jumper |
206301 |
|
|
Protective Warning Marker |
206701 |
