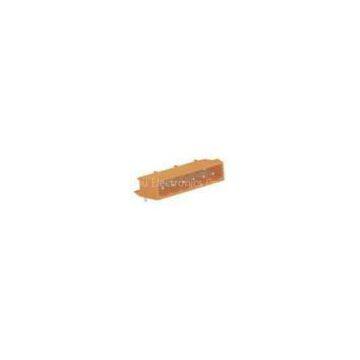

Feed - Through Plug Connector, MCS Connector with Right Angle Pin SP475/SP478
- 0 Kilogram / Kilograms per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Straight Solder Pin MCS Connector with 7.62mm Pitch SP475/SP478 (Orange)
-
2 - 24 Pole MCS Connector, Plug Connectors on Rail - Mounted Terminal Blocks SP475/SP478
-
8mm - 9mm Strip MCS Female Connector with Spring - Cage Clamp SP475/SP478 (Orange)
-
5P, 7P, 11P MCS Connector / Female Connectors with Fixing Flanges SP475/SP478
-
7.62mm Pitch 6P MCS Connector with Spring - Cage Clamp SP475/SP478 (Orange)
-
5.0mm Pitch MCS Male Connector, PCB Connectors SP450/SP458
Product Details
| Brand Name | SUPU | Place of Origin | China | |
Product Description
Feed - Through Plug Connector, MCS Connector with Right Angle Pin SP475/SP478
2-24 Right angle pin
Order No.:478306(Orange)
◆As PCB Connectors,
◆?As feed-through plug connector,
◆?As plug connectors on rail-mounted terminal blocks.
◆?As plug-in connection for flying leads for different types of assembly,
◆?Applied in PCBs?, heat pump controller,?the door control of a lightrail.
|
Article: |
2-24 Right angle pin |
|||
|
Pitch: |
7.62mm/0.3in |
|||
|
IEC |
UL |
CSA |
||
|
Rated Voltage: |
400V |
300V |
300V |
|
|
Rated Current: |
16A |
15A |
15A |
|
|
Available Poles: |
2-24 |
|||
|
Strip length (mm/in): |
8-9mm/0.33 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Pin size |
0.039×0.039 |
|||
|
Peak Voltage: |
6KV |
|||
|
Weight: |
g |
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA |
|||
|
Color: |
Orange |
|||
|
Packing: |
100PCS |
