Home > Products > MCS Connector > 2-24 Right Angle Pin MCS Connector, PCB Connectors SP450/SP458 (Light-Gray)

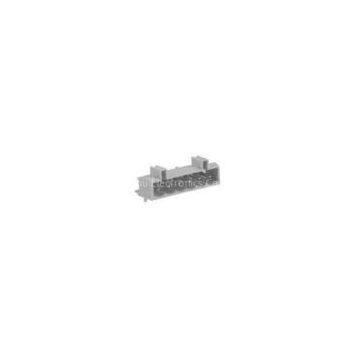

2-24 Right Angle Pin MCS Connector, PCB Connectors SP450/SP458 (Light-Gray)
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
5.0mm Pitch Female MCS Connector with Straight Solder SP450/SP458 (Gray)
-
2P - 24P MCS Connector, Female connectors SP450/SP458 (Light-Gray)
-
PCB MCS Female Connector, Plug - In Connector with 8mm - 9mm Strip SP450/SP458 (Gray)
-
5.0mm Pitch MCS Connector with Right Angle Solder SP450/SP458 (Light-gray)
-
2 - 24 Pole Female MCS Connector With Right Angle Solder Pin SP475 / SP478 (Light-Gray)
-
7.5mm Pitch Feed - Through Plug MCS Connector for PCB, Heat Pump SP475/SP478
Product Details
| Brand Name | SUPU | Place of Origin | China | |
Product Description
2-24 Right Angle Pin MCS Connector, PCB Connectors SP450/SP458 (Light-Gray)
Order No.:450806(Light-Gray)
◆?As PCB Connectors,
◆As feed-through plug connector,
◆?As plug connectors on rail-mounted terminal blocks.
◆?As plug-in connection for flying leads for different types of assembly,
◆?Applied in PCBs, heat pump controller,the door control of a lightrail
|
Article: |
2-24 Right angle pin |
|||
|
Pitch: |
5.0mm/0.197in |
|||
|
IEC |
UL |
CSA |
||
|
Rated Voltage: |
250V |
300V |
300V |
|
|
Rated Current: |
12A |
10A |
10A |
|
|
Wire Range |
0.2-2.5mm2/24-12AWG??? |
|||
|
Available Poles: |
2-24 |
|||
|
Strip length (mm/in): |
8-9mm/0.33 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Peak Voltage: |
4.0KV |
|||
|
Weight: |
g |
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Light-Gray |
|||
|
Packing: |
100PCS |
