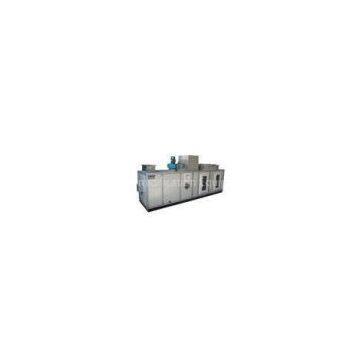

Multifunctional PLC Automatic Industrial Desiccant Rotor Air Dryer Dehumidifier ZCB-5000

Brand Name	Fuda		Place of Origin	China
Model Number	ZCB-5000

Delivery Time:35days
Certification:ISO9001:2008

Multifunctional PLC Automatic Industrial Desiccant Rotor Air Dryer Dehumidifier ZCB-5000

Supply Air Parameter : T≤18℃ RH≤28%

General Description:

ZCB Series Industrial Custom-built Desiccant Rotor Air Dryer Dehumidifier remove humidity using both refrigeration and a desiccant rotor, so it?can both control the humidity and temperature of the air independently in one?packaged unit.?

Operating Principles:

Supply Air Stream

Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.

Exhaust Air Stream

Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.

Applications:

War Industry, Scientific Research, Electric Power Transportation Lithium Battery Industry, Biotechnology Pharmaceutical Industry Chemical, Daily Chemical Industry, Food Beverage Industry Safety Glazing Material Industry, Tyre and Rubber Industry Medical Instrument, Vegetables Frozen, Precise Instrument Wood Goods, Shipbuilding Painting Industry, Kinds of Storage

Specifications:

Main Parameters
Model	ZCB—5000
Total Process Airflow	5000m3/h
Fresh Airflow	500 m3/h
Recirculated Airflow	4500 m3/h
Rotor Regeneration Airflow	1660m3/h
Parameters of Output Air	T≤18℃ RH≤28%
Regeneration Power	48kw
The Power of Regeneration Fan	1.1kw
The Power of Blower	5.5kw
The Power of Driving Motor	0.1kw
Installed Power	54.7kw
Cooling Load	42kw
Power Supply	3P/380V/50HZ

Competitive Advantage:

Sweden Proflute silicon gel wheel? A totally self contained unit PLC automatic control system, human-machine interface Aluminum alloy frame, anti-cold bridge Body modularization design, foam injected double wall casing Stainless steel drain pan and bottom boards Process and reactivation air flow sectors are insulated Electric or steam heating or convert type can be available All operation parameters?can be on-line observed,?ensuring operation?reliability High temperature safety thermostat cutout Electrical interlocking of fan motors, heaters and rotor driving

We?can also provide the technical design and suitable equipment for dehumidification according to your requirements with process airflow from 300m3/h to 60000m3/h.
