Product Description

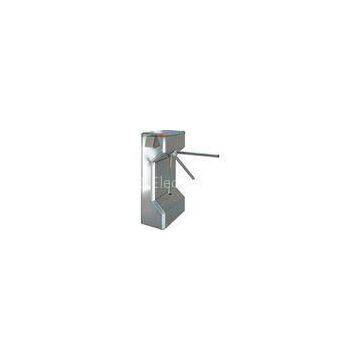

Semi - automatic, 600mm Width Solenoid Tripod Turnstile FJC-Z3318-A with RF Card Reader
System function :
1. Can open the turnstile by two input signals (signals can be input by access controller, button or other equipments)
2. Direction guide function, when the turnstile is ready to read card, the yellow light in the middle will turn one; after reading card and ready for passing, the upper blue light will turn on; if try to push the railing without permission, the red light will turn on
3. Single direction or double direction optional
4. Railing will be off when power off
5. Counting function, if read the card for N times, N persons can pass before the railing close, N<=8(optional function)
6. Voice prompt and display screen available (optional)
7. External counter can be connected to count number of passed people (optional)
8. RS485communication, PC command through serial port is allowed (optional)
9. Alarming output for pushing the railing without permission(optional)
Technical parameters :
| Power consumption | 50 W |
| Housing Size | 1300*280*950mm |
| Housing material | 1.5--2mm, 304# stainless steel, corosion resistant |
| Drive motor | NA |
| Channel width | 550--600 mm |
| Pass speed | 25 persons/min. |
| Input singal optional | DC12V dry contact/RS485 |
| railing-off against power off | Yes |
| Working enviroment temperature | -30°C to +70 °C |
| Working environments | indoor, outdoor |
| Relative humidity | ≤95% coagulation free |
| MCBF | 2, 000, 000 cycles |
