Home > Products > Optical Turnstiles > Gates adjustable optical turnstiles with auto reset, remote control function for entrance

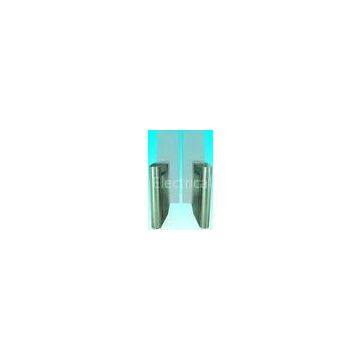

Gates adjustable optical turnstiles with auto reset, remote control function for entrance
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Intelligent RS485 interface self check and alarm function Optical Turnstiles
-
Swing Barrier Gates Model FJC-Z2238 Wider Channel for Wheelchairs, Handicap Channel
-
Model FJC-Z2238 Swing Barrier Gates Wider Channel for Wheelchairs, Handicap Channel
-
Wider Channel Swing Barrier Gates Model FJC-Z2238 for Wheelchairs, Handicap Channel
-
high quality stainless steel manual single door Supermarket Swing Gates HBE-AC-6
-
RS485 automatic Swing Barrier Gates with infrared reset option for residential building
Product Details
| Place of Origin | China | |
| Model Number | Join |
Product Description
Application:
Station, wharf, tourist attractions, entrance/exit channel management of factory
Channel management for exhibition, swimming pool
Time attendance, access control, consumption management of enterprise/business unit
Special channel management system
Advantages:
Self check and alarm function for convenient maintenance and use. Programmable through a built in mini keyboard on the control panel. Auto stop feature when blocked, prevent users from being nipped or hurt. Sophisticated sensor prohibits un-authorized entry. Gates automatically locked until opening signal is received. Gates synchronization adjustable. Un-authorized / force entry trigger internal alarm system. Auto reset function, automatic lock if the pedestrian hasn’t pass through.? Passing time adjustable. Normally open / close option Fail safe open when powered off. Ready for integration for various access controller such as card reader biometric, ticket access etc. Single and bi-directional control. Direct controlled and managed by remote computer . Exact logic estimate, sensor reset function Set normal open/close status by remote control The casework and length of glass gate can be customized upon client\'s requests. Voice output(option) Counting(option)Specification:
|
Technical parameters |
|
|
Housing material |
304 stainless steel |
|
Dimension |
L1600*W300*H1000mm |
|
Width of glass gate |
285mm |
|
Height of glass gate |
1800mm |
|
Standard passage width |
550mm |
|
Net weight |
90Kg |
|
Power |
24V DC |
|
Voltage |
AC85-240V |
|
Frenquency |
50/60Hz |
|
Communication interface |
RS485 |
|
Input interface |
Dry contact signal/12V level signal/DC 12V pulse signal |
|
Normal life-span |
3 million times |
|
Transit speed |
40 persons/min |
|
Opening/closing time |
1-2 secs |
|
Auto reset time |
10 secs |
|
Working environment |
Indoor/outdoor |
|
Temperature |
-10C to 50C |
|
Relative humidity |
≤90%? no condensation |
