Product Details
| Brand Name | SINOCOREDRILL | Place of Origin | China | |
Product Description
Certification:CE

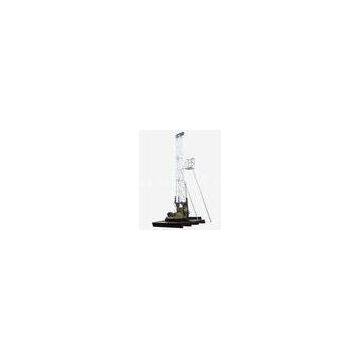

Lightweight core drilling rigs with function of derrick’s hydraulic lifting and lowering
XY-42T core drill rig, combining rig with derrick into one unit,is kind of drilling equipment integrated the drill rig and mast-type derrick, with the function of derrick’s hydraulic lifting and lowering. The rig is simple in structure, reasonable in design, light in weight, easy for operation; it has a wide range adjusting angle. It is especially suitable for great slope angle drilling.
The?Main?Parameter?of?Drill?Rig
|
Max.?Torque |
3.2KN·M |
|
Spindle?Stroke |
600?mm |
|
I.D.?of?Spindle |
92?mm |
|
Max.?Lifting?Capacity?of?Spindle |
80?KN |
|
Max.?Pressure?of?Spindle |
60?KN |
|
Max.?Hoisting?Power |
30?KN |
|
Power?of?Motor |
30?KW |
The?Parameter?of?Mast
|
Height |
10?Meters |
|
Area?of?Base? |
4×4?M2 |
|
Area?of?Top?Level |
0.46×0.52?M2 |
|
Number?of?Pulley |
5?or?3?pieces |
|
Max.?Load?of?Derrick |
100?KN |
|
Load?of?Movable?Operation?Platform |
800?N |
|
Adjusting?Angle?of?Derrick |
45-90° |
