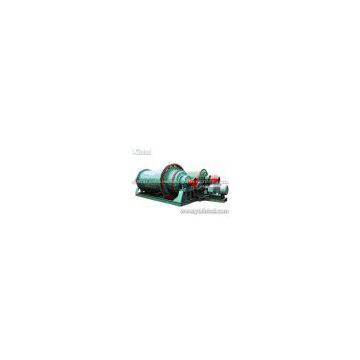

energy saving grate ball mill/ grid ball mill

Brand Name	Xinhai		Place of Origin	China
Model Number	MQGg

Energy-saving grate ball mill

1)Product advantages
1.Energy-saving grate ball mill is easy to start and save energy up to 20-30%
2.Energy-saving grate ball mill adopts groove-type circular lining plate that is instrumental in increasing contact areas of iron balls and ores

2)Product feature
1 The transmission machinery of Energy-saving grate ball mill substitutes large-scale double row self-aligning roller bearing for sliding bearing. It is easy to start and saves energy up to 20-30%
2 Energy-saving grate ball mill adopts groove-type circular lining plate that is instrumental in increasing contact areas of iron balls and ores, which enhances grinding action and ore lifting capacity and decreases energy consumption.
3 Energy-saving grate ball mill adopts whole milling house, which makes it easy for construction and installation.
4 Energy-saving grate ball mill has bigger discharge opening and huge processing capacity.
5 Energy-saving grate ball mill is equipped with oil-mist lubrication device which guarantees smooth operation of gears.

3)Product application
Mill is essential and widely used equipment for raw material crushing. Its main component is a cylinder with bigger diameter and smaller length which is revolved by transmitting machinery. Materials are put in cylinder through the feed opening and then thoroughly grinded. The falling course of iron balls and ores can produce huge falling impact and autogenous grinding. The continuous feeding of ores can create considerable pressure to make ores move from feed opening toward discharge opening. Finally, acceptable particles are discharged from the discharge opening. Acceptable ore particles are carried away by water in wet mill, or by air in dry mill.

4)Product principle
Its main component is a cylinder with bigger diameter and smaller length which can revolve via the transmitting machinery. Materials are put in cylinder through the feed opening and then thoroughly grinded, because the falling course of iron balls and ores can produce huge falling impact and autogenous grinding. The continuous feeding of ores can create considerable pressure to make ores move from feed opening toward discharge opening. Finally, acceptable particles are discharged from the discharge opening. Acceptable ore particles are carried away by water by wet mill, or by air by dry mill. The discharge opening is equipped with a discharge grate, and the ore pulp horizon of discharge opening is low. These two factors prevent ores from being overly grinded, and iron balls from being dismissed. Under same circumstance, the processing capacity of energy-saving grate ball mill is bigger. Rolling bearings contribute enormous energy saving.
