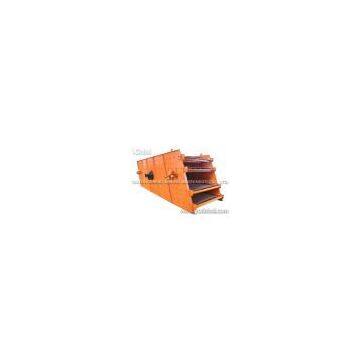

Circular vibrating screen

Brand Name	Xinhai		Place of Origin	China
Model Number	YA

Circular vibrating screen

1)Product advantages
1.High abrasion resistance and long service life
2.High intensity screen frame structure
3.Low temperature rise of ample clearance bearing
4.Reasonable mechanical structure , lower noise and high efficiency
5.Ring groove rivets

2)Product feature
Xinhai abrasion-resistant screen was separated into three types according to the different load, light-duty screen (HD rubber), medium-duty screen (HD70 rubber), heavy-duty screen (HDS rubber), all of them have long service life. High intensity screen frame structure Low temperature rise of ample clearance bearing Reasonable mechanical structure, low noise and high screening efficiency Ring groove rivets connection, advanced structure, strong and durable The small amplitude, high frequency and high angle structure insures its high screening efficiency and large handling capacity. Vibrator with large clearance bearing, lubricated by dilute oil, low noise and long service life. Widely common used parts and convenient maintenance.

3)Product application
Round vibrating screen is mainly composed by screening box, mesh, vibrator, damper spring etc. The vibrating screen adopts the vibration exciter with barrel type of eccentric shaft and block to adjust the swing. The vibration exciter is installed on the lateral plate of the sieving box. The motor makes the exciter swing round speedily through tire coupling. The continuous forced circular motions of sieving box were achieved through the powerful centrifugal force. The lateral plate made by the high quality steel plate without any welding point. The lateral plate, beam and the vibration exciter connected by strength bolts and ring grooved lock bolts. Vibrator is installed on the lateral plate of the sieving box, also spinning by motor, produce the centrifugal force, and vibrate the screen box. Screening machine uses socket type installation. The screen surface dip angle is adjusted by changing spring support to realize its height requirements Round vibrating screen can be installed in the right of the screen or the left side of the screen, without special requirements, factory will install it in the right according to the of the movement direction . Screen is the main fragile part. We can degign screen mesh, punched or rubber deck with hadifield steel according to the variety of materials and the user’s requirements.Screen surface is devided into single-deck and double-deck, both of them can meet the requirements of high efficiency, long service life, no blocking. Round vibrating screen is a kind of high efficiency vibrating screen. It can be used in screening aggregate, also can be used in coal dressing, mineral separation, building materials, electricity, chemical industry and so on.

4)Product principle
It adjusts the amplitude by tube-shaped violent vibration screen of eccentric shaft and eccentric blocks. The body moves like a circle, in order to make the materials screened, materials in small size will go through the hole when they meet the screen surface, so as to realize the grading.
