ZBL-S220 Digital Display Rebound Hammer
- T/T L/C D/P D/A
- 7 days
You May Like
-
HT225-V Integrated Digital Voice Hammer
-
ZBL-U510 Ultrasonic Detector
-
JY-XS600 Digital Corrosion Meter
-
JY-8S Grid Scan Concrete Reinforcement Detector
-
WAW Microcomputer Controlled Electro-hydraulic Servo Steel Stranded Wire Universal Testing Machine
-
WA Digital Display Hydraulic Universal Testing Machine
Product Details
| Brand Name | yueke | Place of Origin | China | |
| Model Number | ZBL-S220 |
Product Description

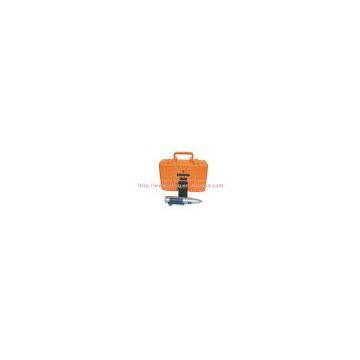

ZBL-S220 Digital Display Rebound Hammer( Schmidt Hammer )
Application:ZBL-S220 Concrete Digital testing Hammer is mainly used in ordinary concrete anti-compressive strength nondestructive testing of concrete construction project.
Parameter
1.Pressure range: 10-60Mpa
2.Impact function: 2.207J (0.225kgf.m)
3.Stiffness of elastic pullback spring: 7.84N/cm
4.Conformity error of indicator : less than 1%
5.Steel anvil calibration testing value: 80±2
6.Power: DC 3.6 ~ 4.2V or AC 100 ~ 240V
7.Size: Main instrument (113mm × 75mm × 27mm), test hammer (φ60mm × 280mm)
8.Weight: Main instrument: 0.2 kg, test hammer: 1.0 kg
Rebound Hammer
