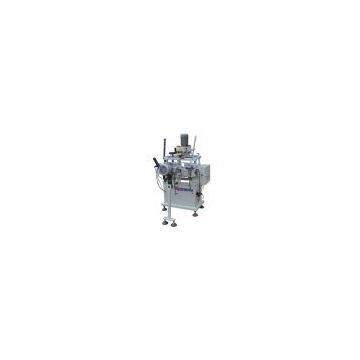

Aluminum Window And Door （Curtain Wall）Machine-Lock Hole Processing Machine for window and door
Negotiable
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Aluminum Window And Door （Curtain Wall）Machine-Lock Hole Processing Machine
-
Aluminum Window And Door （Curtain Wall）Machine-Milling/Drilling Machine
-
Aluminum Window And Door （Curtain Wall）Machine-Four-head Combination Drilling Machine
-
Aluminum Window And Door （Curtain Wall）Machine-Punching Machine
-
Aluminum Window And Door （Curtain Wall）Machine-Punching Machine
-
Aluminum Window And Door （Curtain Wall）Machine-Pressing Machine
Product Details
| Brand Name | TECNO | Place of Origin | China | |
| Model Number | LZF3-300×100A |
Product Description
◎ It is composed of three-hole drill and copy-routing mill.
◎ It process various kinds of holes, grooves and water-slots for aluminum win-door.
◎ Adjustment device change to the top of the machine, result easy adjusting.
◎ Changeable copying templates with different holes and grooves.
Technical Parameter:
Model LZF3-300×100A
Input voltage 380V/50Hz
Input power 1.85kw
Air pressure 0.4~0.6MPa
Air consumption 30L/min
Rotation speed 9940r/min
Cutter diameter φ5mm φ8mm
Copy routing range 300×100mm
Overall dimension 1130×1100×1460mm
