Home > Products > Welding Machine > PVC window and door machine CNC Vertical Four-point Welding Machine f

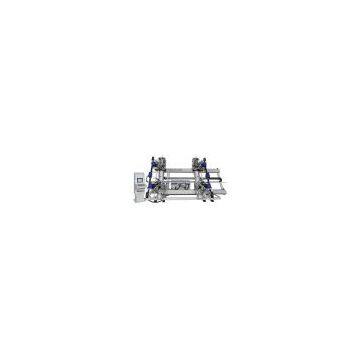

PVC window and door machine CNC Vertical Four-point Welding Machine f
Negotiable
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
PVC window and door machine Vertical Four-point Welding Machine
-
PVC window and door machine-Horizontal Four-point Welding Machine
-
PVC window and door machine-Four-head Seamless Welding Machine
-
PVC window and door machine-Three-head Seamless Welding Machine
-
PVC window and door machine-Two-head Seamless Welding Machine
-
PVC window and door machine-Four-head Seamless Welding Machine (Single Side)
Product Details
| Brand Name | TECNO | Place of Origin | China | |
| Model Number | SHP4-CNC-3000B |
Product Description
Introduction:
◎ One working circle, one frame.
◎ The machine heads automatically back to the origin position, easy operation.
◎ Feeding system adopts imported linear guide pair, with high accuracy and smooth working.
◎ Size tolerance compensation is available to increase welding precision.
◎ Common profile fixture along with the machine can meet various height profiles' processing requirement.
◎ The length located by ball screw makes high accuracy.
◎ Back plates are convenience to change, when connecting joints, the two clamping boards feed symmetrically results parallel welding, increase the welding strength.
◎ Imported computer control system, easy operation and high stability.
Technical Parameter:
Model SHP4-CNC-3000B
Input voltage 380V/50Hz
Input power 10Kw
Spindle power 5.5Kw
Air pressure 0.6-0.8MPa
Air consumption 200L/min
Welding height 25-150mm
Max. Welding width 140mm
Welding range 400×400-1800×3000mm
Overall dimension 5000×2000×2860mm
