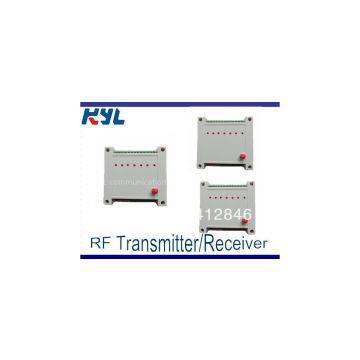

KYL-815 4-way on-off control module 2km-3km remote pump water level automation control 433MHz wireless i/o module
USD $75 - $75
/ Piece
2 Pieces(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
KYL-815 4-way industry i/o module 433MHz 2km-3km ON-OFF wireless control tank level controller
-
KYL-815 433MHz 4-way RF wireless I/O Module for 2km-3km remote pool pump control on-off control switch module
-
KYL-815 24V 4-way wireless io Module 433mhz input output module for 2km-3km valves on-off control
-
KYL-815 433MHZ 4-way Wireless I/O Module for wireless pump control 2km-3km distance ON-OFF Control
-
KYL-815 24V 4 way relay Wireless I/O module to Control ON-OFF Wireless Tank Level
-
KYL-200L 5V 1W Power RF transceivers RS-232/RS-485/TTL 400-470MHz Frequency RF modules 2-3KM LOS
Product Details
| Brand Name | KYL | Place of Origin | China | |
| Model Number | KYL-815 |
Product Description
This 4-way ON-OFF module is to transmit the ON-OFF condition to a remote place wirelessly in time. When here the switch condition is ON, the output in the remote place is ON. When the local switch condition is OFF, the other terminal is OFF.
Features:
1. 4-way isolated input, high reliability and stability.
2. 4-way relay dry contact output, contact current is 220V, 5A.
3.Collocated with a wireless data module inside whose transmitting distance is about 2km-3km;
4.the working frequency 433MHz (450 or 470MHz also available ); (pls tell us what frequency you need ? )
5.RF power: 1000mW;
6.Receiving sensitivity: -120dBm
7. Receiving current: 60mA; transmitting current: 350mA
8. Power supply: DC 12V-30V
9.data rate : 1200pbs/2400bps/4800bps/9600bps/19200bps (pls tell us what data rate you need ? )
9. Dimension: 95mm x 90mm x 40mm
Welcome to contact Sarah for more information.
sales01(at)rf-data(dot)com
