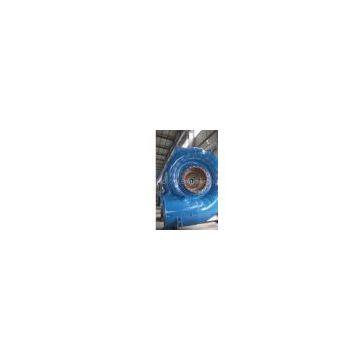

Large Francis Reaction Hydro Power Turbine for Head 10m - 300m

Large Francis Reaction Hydro Power Turbine for Head 10m - 300m

Specifications:

Descrition:

The Francis type turbine is mostly suitable for hydropower?stations with medium or high head from 10m to 300m. They are in both vertical or horizontal shaft arrangement and could be vastly selected by the hydraulic power stations.

lts feature is that the water flow enters the runner inward in a radial direction , changes direction gradually and then passes out axially. Francis turbine is characterized by reliable operation, simple construction and high efficiency, etc.

?Normally, we adopt the horizontal Francis with capacity below 5MW, runner diameter below 90cm. And the vertical Francis with capacity below 20MW.

Applications:

1.???? Water head: from 10m to 300m

2.???? ?Power: 100kw to 30Mw?

3.???? Frequency: 50hz or 60hz?

4.???? Output Type: 400V, 3.3KV, 6.3KV, or?10.5KV AC three phase,

?If you are interest with the Francis turbine, you should send some?key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.

Normally, Medium size and larger Francis turbines are most often arranged with a vertical shaft, Small Francis turbine always arranged with horizontal shaft, but it is not absolute.

Competitive Advantage:

HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.

With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.

HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.
