Horizontal Pelton Turgo Hydro Turbine With One / Two Nozzles

Horizontal Pelton Turgo Hydro Turbine with One / Two Nozzles

Specifications:

Descrition:

The turgo turbine is a kind of impulse turbine and suitable for heads from 50m-250m.

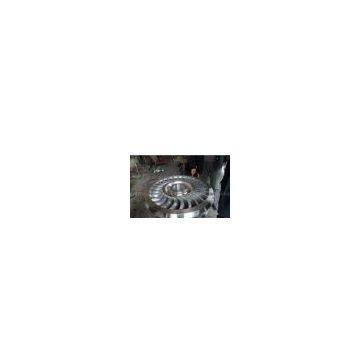

The feature is an angle of 22.5°is formed between the center line of the nozzle jet and the rotational plane of the runner. The?water from the penstock is transformed into a high speed jet through the nozzle. The water is directed obliquely to one side of the runner and discharges at the other. The dynamic force of water flow makes the runner rotate rapidly.

Turgo turbine is characterized not only by high specific speed , high flow and even efficiency curve, but also by simple construction, easy erection test and adjustment , reliable operation, simple maintenance and low cost.

Applications:

1.???? Water head: from 50m to 250m

2.???? ?Capacity: 100kw to 2000KW?

3.???? Runner diameter: below1.5m.

4.???? Frequency: 50hz or 60hz?

5.???? Generator Output Type: 400V, 3.3KV, 6.3KV, or?10.5KV AC three phase,

If you are interest with the Turgo turbine, you should send some?key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.

Competitive Advantage:

HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.

With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.

HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.
