Home > Products > Ball Joint Bearings > 71900C, 71903C Single Row Radial Load Angular Contact Ball Bearin For Oil Pumps

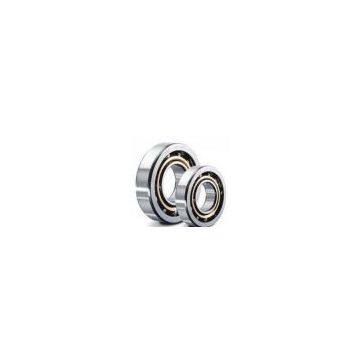

71900C, 71903C Single Row Radial Load Angular Contact Ball Bearin For Oil Pumps
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Single Row Angular Contact Ball Bearing 7226, 7230 For Radial Loading, Printing Machines
-
7220, 7221, Single Row Angular Contact Ball Bearing For Gas Turbines, Oil Pumps
-
7068, 7076 Single Row Radial Load Angular Contact Ball Bearin For Machine Tool Spindles
-
7200, 7202, 7203 Single Row Angular Contact Ball Bearing For Air Compressors
-
7200, 7201, 7203 Single Row Angular Contact Ball Bearing For Gas Turbines, Installations
-
7204, 7205, 7207 Single Row Angular Contact Ball Bearing For High Frequency Motors
Product Details
| Brand Name | KOYO, LYC, NSK, NTN, SKF, THK, TIMKEN, ZWZ，HRB | Place of Origin | China | |
| Model Number | Various standard are available |
Product Description
Certification:ISO9001, ISO14001
71900C, 71903C Single Row Radial Load? Angular Contact Ball Bearin For Oil Pumps
Feature:
??? When the single-row angular contact ball bearing is carrying the radial load, they will be a component of force in the axial direction. Therefore it is suggested that two of there bearings be applied in back-to-back or face-to-face arrangements. Single row bearings can carry radial load and axial load in one direction. Double-row angular contact ball bearings have two designs of one outer ring and two inner rings and one outer ring and one inner ring. For the design with one outer ring and two inner rings, the axial clearance is easy to control during machining.
Applications:
??? These bearings are mainly applied in the machine tool spindles, high-frequency motors, gas turbines, oil pumps, air compressors, printing machines and other installations.
| Model | Size | 〆15o | 〆25o | Cage Material | ||||
| Limit Speed | Limit Speed | |||||||
| ID | OD | H | Rated load amount | Rated load amount | ||||
| Cr?? Cor | Grease?? Oil | Cr?? Cor | Grease??? Oil | |||||
| 71900C | 10 | 22 | 6 | 2.9?? 1.8 | 69000?? 109000 | 2.7?? 1.7 | 66000?? 90000 | Bakelite |
| 71901C | 12 | 24 | 6 | 3.2??? 2.2 | 62000? 94000 | 3.1?? 2.1 | 55000?? 84000 | Bakelite |
| 71902C | 15 | 28 | 7 | 4.8?? 3.4 | 52000?? 79000 | 4.6?? 3.2 | 49000?? 74000 | Bakelite |
| 71903C | 17 | 30 | 7 | 5.1?? 3.8 | 49000?? 74000 | 4.8?? 3.6 | 44000?? 66000 | Bakelite |
