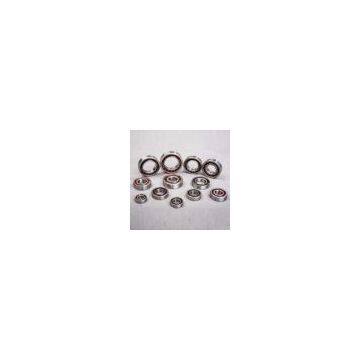

Radial Load Single Row 7019, 7020 Angular Contact Ball Bearin For Air Compressors
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Inch Sizes Single Row Tapered Roller Bearings EE763330 / 763410 With Slide Surface
-
Inch Size Single Row Taper Roller Bearings of L183448 / L183410 For Radial Load
-
Single Row Tapered Roller Bearings Inch Sizes LL778149 / LL778110 For Axial Load
-
EE243196 / 243250 Inch Sizes Single Row Taper Roller Bearings of Roller Bearing
-
Single Row Taper Roller Bearings 53830 / P6 of One Direction Bearing With Sliding Surface
-
Taper Rolling Bearing HH249949 / HH249910 of Single Row Taperes Roller Bearings
Product Details
| Brand Name | KOYO, LYC, NSK, NTN, SKF, THK, TIMKEN, ZWZ，HRB | Place of Origin | China | |
| Model Number | Various standard are available |
Product Description
Certification:ISO9001, ISO14001
Radial Load Single Row 7019, 7020 Angular Contact Ball Bearin For Air Compressors
Feature:
??? When the single-row angular contact ball bearing is carrying the radial load, they will be a component of force in the axial direction. Therefore it is suggested that two of there bearings be applied in back-to-back or face-to-face arrangements. Single row bearings can carry radial load and axial load in one direction. Double-row angular contact ball bearings have two designs of one outer ring and two inner rings and one outer ring and one inner ring. For the design with one outer ring and two inner rings, the axial clearance is easy to control during machining.
Applications:
??? These bearings are mainly applied in the machine tool spindles, high-frequency motors, gas turbines, oil pumps, air compressors, printing machines and other installations.
| Model | Size | 〆15o | 〆25o | Cage Material | ||||
| Limit Speed | Limit Speed | |||||||
| ID | OD | H | Rated load amount | Rated load amount | ||||
| Cr?? Cor | Grease?? Oil | Cr?? Cor | Grease??? Oil | |||||
| 7019 | 95 | 145 | 24 | 79.1??? 97.6 | 7500??? 13000 | 74.8?? 92.7 | 6500???? 11000 | Bakelite |
| 7020 | 100 | 150 | 24 | 81.2?? 103.3 | 7000??? 12000 | 76.7??? 9.8 | 6000???? 10000 | Bakelite |
| 7021 | 105 | 160 | 26 | 93.9??? 118.2 | 6500??? 11000 | 88.8??? 112.2 | 6000???? 10000 | Bakelite |
| 7022 | 110 | 170 | 28 | 110.4?? 139.8 | 6000??? 10000 | 104.4?? 132.8 | 5700???? 9000 | Bakelite |
