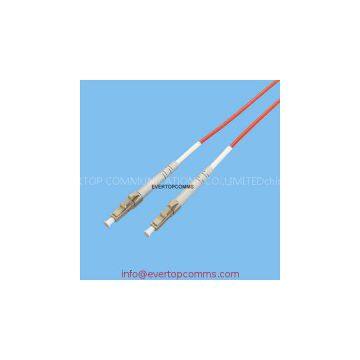

LC/PC-LC/PC Multimode Simplex Patch Cord
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China |
Product Description
Features
---Low insertion and back reflection loss
---Good exchangeability
---Good durability
---High temperature stability
---Standard: Telcordia GR-326-CORE
Applications
-Telecommunication networks
-Data transmission networks
-Computer networks (Gigabit Ethernet, SoNet, etc. )
-Cabling system
-Interconnection of fiber optic transmission equipments
-ODF of optical transmission systems
-FTTX applications
Specifications
Fiber Type: OS1(9/125um) OM1(62.5/125um) OM2(50/125um) OM3(10GIG)
Connector Polishing Type: PC, UPC, APC
Fiber Cable Jacket material: PVC/LSZH
Standard color: Singlemode :Yellow color, Multimode :Orange color
Cable strain relief (boot) O.D. : 0.9mm/1.8mm/2.0mm/3.0mm
Compliant with JIS C-5973, IEC RoHS
Q.C. : 100% function testing include Insertion loss, Return loss and Connector end face geometry.
Parameter table
Insertion loss Singlemode: PC/UPC≤0.2dB APC≤0.2dB
Multimode PC/UPC≤0.3 dB
Return loss Singlemode PC/UPC≥50dB APC≥60 dB
Multimode PC/UPC≥35 dB
