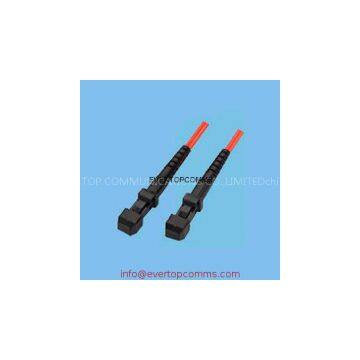

MTRJ/PC-MTRJ/PC Multimode Duplex Patch Cord

The singlemode or multimode MT-RJ fiber cable available from Huihong are used in two fiber applications and are well suited for high density applications. The MT-RJ fiber patch connectors utilize precision molded MT ferrules pioneered by NTT, together with precision metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MT-RJ fiber cable is reliable and simple to terminate.

Features
---Low insertion and back reflection loss
---Good exchangeability
---Good durability
---High temperature stability
---Standard: Telcordia GR-326-CORE

Applications

-Telecommunication networks
-Data transmission networks
-Computer networks (Gigabit Ethernet, SoNet, etc. )
-Cabling system
-Interconnection of fiber optic transmission equipments
-ODF of optical transmission systems
-FTTX applications

Specifications

Fiber Type:  OS1(9/125um) OM1(62.5/125um) OM2(50/125um) OM3(10GIG)
Connector Polishing Type:  PC, UPC, APC
Fiber Cable Jacket material:  PVC/LSZH
Standard color: Singlemode :Yellow color, Multimode :Orange color
Cable strain relief (boot) O.D. : 0.9mm/1.8mm/2.0mm/3.0mm
Compliant with JIS C-5973, IEC RoHS
Q.C. : 100% function testing include Insertion loss, Return loss and Connector end face geometry.

Parameter table

 Insertion loss   Singlemode: PC/UPC≤0.3dB

                             Multimode  PC/UPC≤0.3 dB

 Return loss       Singlemode PC/UPC≥50dB

                             Multimode   PC/UPC≥35 dB
