Main for home and office Appliance,TV,refrigerator,fan,air conditioner,induction cooker,computer etc. |
|
![\"go]() |
|
|

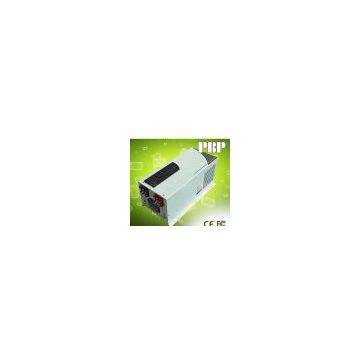

Power Star W7
Durable construction for long life under extreme environmental conditions
Low idle current (less than 1 watt) conserves energy when no loads are present
Soft start capability for starting heavy loads
Built-in starting control circuits for two- and three-wire generator starting systems
Simplified controls with a snap-on cover that protects settings from being accidentally changed
Better thermal performance allows full output power to 50°C (122°F) without de-rating
High surge capacity starts more difficult loads and handles overload conditions reliably
Durable powder coated, corrosion resistant steel chassis
70-amp automatic three-stage battery charger (bulk, absorption, and float) and battery equalization with remote temperature sensor for increased performance
New power factor corrected (PFC) charging, combined with a more sophisticated multi-stage battery charging algorithm,reduces electricity draw and generator run-time
Pure copper transformer inside and pure copper DC terninal port outside. |
|
![]() |
![\"go]() |
|
Technical Specifications. |
IR Series Power Inverter 1KW-3KW
|
Rated Capacity |
1000w |
1500w |
2000w |
3000w |
1.Input
|
Model |
120v Models |
230v Models |
|
Nominal Voltage |
100V/110V/115V/120V Selectable |
200V/220V/230V/240V Selectable |
|
Input Frequency |
Nominal Input Frequency 50Hz/ 60Hz (Auto Detection)
Low Line Frequency Re-Connect :58+0.3Hz For 60Hz;
48+0.3Hz For 50Hz;
Low Line Frequency Disconnect :57+0.3Hz For 60Hz;
47+0.3Hz For 50Hz;
High Line Frequency Re-Connect: 64+0.3Hz For 60Hz;
54+0.3Hz For 50Hz;
High Line Frequency Disconnect: 65+0.3Hz For 60Hz;
55+0.3Hz For 50Hz; |
|
Efficiency |
>95% (Normal Mode) |
|
Noise Filtering |
Full Time EMI/RFI Filtering |
Over Current
Protection |
By Re-Settable Over Current Protector |
|
Voltage Range |
|
Nominal Input Voltage |
230Vac( Selectable) |
|
Low Line Disconnect |
184Vac±4% |
|
Low Line Re-Connect |
194Vac ±4% |
|
High Line Disconnect |
265Vac±4% |
|
High Line Re-Connect |
255Vac±4% |
|
Max AC Input Voltage |
270VRMS |
|
2.Output
|
Model |
120v Models |
230v Models |
Power Levels
Crated At
Nominal Inputs |
1000W |
1500W |
2000W |
3000W |
|
Output Voltage |
100V/110V/115V/120V Selectable |
200V/220V/230V/240V Selectable |
|
Voltage Waveform |
Pure Sine Wave |
|
Crest Factor |
3:1 |
|
Output Frequency |
Nominal Input Frequency 50Hz/ 60Hz (Auto Detection)
Low Line Frequency Re-Connect :
58+0.3Hz For 60Hz;48+0.3Hz For 50Hz;
Low Line Frequency Disconnect :
57+0.3Hz For 60Hz;47+0.3Hz For 50Hz;
High Line Frequency Re-Connect:
64+0.3Hz For 60Hz;54+0.3Hz For 50Hz;
High Line Frequency Disconnect:
65+0.3Hz For 60Hz;55+0.3Hz For 50Hz; |
Regulation
(Nominal) |
±10% Typical Of Nominal Voltage |
|
Transfer Time |
Transfer Time : AC To DC : 10ms (Typical)
Transfer Time : DC To AC : 10ms(Typical ) |
Max Bypass
Overload Current |
30A |
3.Input
|
Model |
120V Models |
230V Models |
|
Nominal Voltage |
DC12V/24V |
DC12V/24V |
DC12V/24V |
DC24V/48V |
|
Efficiency |
>80% |
|
Noise Filtering |
Full Time EMI/RFI Filtering |
Over Current
Protection |
By Re-Settable Over Current Protector |
|
Voltage Range |
|
Min DC Start Voltage |
10V/20V/40V |
|
Low Battery Alarm |
10.5Vdc ± 0.3Vdc
For 12V Battery;
21.0Vdc ± 0.6Vdc
For 24V Battery;
42.0Vdc ± 0.6Vdc
For 48V Battery |
Low DC Input
Shut-Down |
10.0Vdc ± 0.3Vdc
For 12V Battery
20.0vdc± 0.6Vdc
For 24V Battery;
40.0Vdc± 0.6Vdc
For 48V Battery |
High DC Input
Alarm& Fault |
16Vdc ± 0.3Vdc
For 12V Battery;
32Vdc ± 0.6Vdc
For 24V Battery;
64Vdc ± 0.6Vdc
For 48V Battery |
High DC Input
Recovery |
15.5Vdc ± 0.3Vdc
For 12V Battery;
31.0Vdc ± 0.6Vdc
For 24V Battery;
62.0Vdc ± 0.6Vdc
For 48V Battery |
|
|
Surge Protection |
(110%<Load<125%) ±10%:
Fault (Shutdown Output) After 15 Minutes;
(125%<Load<150%) ±10%:
Fault (Shutdown Output) After 60s;
Load>150% ±10%:
Fault (Shutdown Output) After 20s
2000VA / 2700VA:440 Joules 324 Joules
4000VA / 5000VA:660 Joules |
4.Output
Power Levels
Crated At
Nominal Inputs |
1000w/1500w/2000w/3000w |
|
Output Voltage |
100V/110V/115V/120V
Selectable |
200V/220V/230V/240V
Selectable |
|
Voltage Waveform |
Pure Sine Wave |
|
Crest Factor |
3:1 |
|
Output Frequency |
|
Nominal Input Frequency |
50Hz ± 0.3Hz |
Auto Tracking Main
Frequency(Hz) |
50Hz @48-54Hz ;
60Hz @58-64Hz |
|
Regulation
(Nominal) |
±10% Typical Of Nominal Voltage |
Regulation
(Battery Mode) |
Output Voltage Regulation ±10% Rms |
|
Transfer Time |
Transfer Time : AC To DC : 10ms (Typical)
Transfer Time: AC To DC : 10ms (Typical ) |
Max Bypass
Overload Current |
30A |
Nominal Input
Voltage |
230Vac |
Input Voltage
Range |
196~243Vac |
Nominal Output
Voltage |
According To The Battery Type |
Nominal Charge
Current |
35amp-70amp |
Charge Current
Regulation |
± 5Adc |
Battery Initial
Voltage |
0 –15.7 V Dc (Can Operate With 0V Battery) |
Charger Short
Circuit Protection |
Circuit Breaker |
Over Charge
Protection |
Bat. V ≥ 15.7Vdc/31.4Vdc,
Beeps 0.5s Every 1s & Fault After 60s |
|
Battery Type |
Lead-Acid 12Ah ~ 250Ah |
|
Voltage |
0 –15.7 V DC (Can Operate With 0V Battery) |
Typical Backup
Time |
No Limit |
|
Charging Method |
Smart Pulse Charging With Two Charging Modes
Quick Charging When Battery Is Not Fully Charged,
Trickle Charging When Battery Is 90% Fully Charged. |
Average Charging
Current |
30A At Normal Line And Normal Temperature |
Average Charging
Voltage |
35A/20A |
45A/30A |
65A/35A |
75A/30A |
|
Protection |
Over Current Protection (SCR Control)
Over Charging Voltage Protection (SCR Control)
Thermal Protection (CPU Control) |
5.Communications & Management
|
Control Panel |
LCD/LED Option |
|
Audible Alarm |
Alarm On Battery:Low Battery & Battery Over Voltage
Alarm On Abnormal Operation:
Over Load, Short-Circuit, & Over Heat |
Cooling Fan
Control |
Temperature Fan,Forced Air, Variable Speed Fan |
6.Environment And Safe
Operating
Temperature |
0℃ To 40℃ (32℉ To 104℉) |
Transit/Storage
Temperature |
-15℃ To 60℃ |
|
Relative Humidity |
5 - 95% Non Condensing |
|
Operating Altitude |
0 ~ 3000 Meters |
|
Audible Noise |
60 Dba Max at 1m |
|
Safety Markings |
CE.FCC CE |
|
EMC |
Class B, EN50091-2, FCC Part15, IEC1000-2-2 |
|
Isolation |
1.5kvac For 1 Minute Between Battery And AC Side |
Quality Control
System |
ISO 9001 |
7.Physical
Dimensions:
(H×D×W) |
423X185X160MM |
Weight:
Net / Gross (Kg) |
20kgs |
21kgs |
22.5kgs |
27.5kgs |
|
Packing |
Export Carton For Each Unit Per Carton |
|
|
