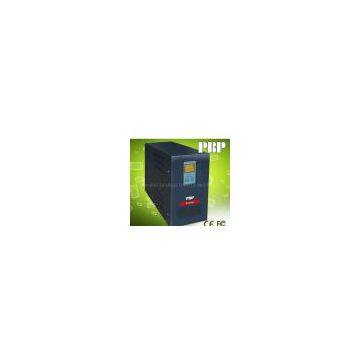

Pure Sine Wave Inverter NB-T Series Inverter
600w/1000w/1200w/1500w/2000w/3000w/4000w/5000w/6000w/10000W
1.Input
|
Rated Capacity |
600W |
1KW |
1200W |
1500W |
2KW |
3KW |
4KW |
5KW |
6KW |
10KW |
|
Input Voltage |
110V Models |
220V Models |
Nominal
Voltage |
100/110/115/120V
Selectable |
200/220/230/240v Selectable |
Input
Frequency |
47Hz ~ 65Hz, 50/60Hz auto-sensing |
|
Efficiency |
95% (Normal mode) |
|
Noise Filtering |
Fulltime EMI/RFI filtering |
|
Over current protection |
By re-settable over current protector |
|
Voltage Range |
-35% ~ +25% for selected nominal voltage. |
AVR Range
(2 Bucks,
2 Boosts) |
Enhanced Buck: +15% of selected nominal voltage
Buck mode: +5% of selected nominal voltage
Boost mode: -5% of selected nominal voltage Enhanced Boost: -12.5% of selected nominal voltage |
Surge
Protection |
324 Joules |
2.Output
|
|
110V Models |
220V Models |
|
Output Voltage |
100/110/115/120V Selectable |
200/220/230/240v Selectable |
|
Waveform |
Sine wave |
|
Crest Factor |
3:1 |
Output
Frequency |
Auto Select for 50/60Hz
47Hz ~ 55Hz for 50Hz nominal;
56Hz ~ 65Hz for 60Hz nominal |
Regulation
(Nominal) |
±10% typical of normal voltage
(optional at ±8% AVR for wide I/P up to ±35%) |
|
Regulation (Battery mode) |
±3% of selected output voltage
(adjustable with the remote set-up software) |
|
Transfer time |
Typical: 5ms (Including detection time) |
|
Over current protection |
Over load alarm level 100% ~ 120%;
Over load shutdown level 120% ~ 190%
(Adjustable by using the remote set-up software) |
|
Battery type |
Sealed ,maintenance-free lead acid |
|
Voltage |
600w-1000w : 12/24vdc
1800w : 24/48vdc 2000w-4000w : 48vdc
5000w-10000w : 96/192vdc |
Typical
backup time |
Depend on external battery |
Charging
method |
Smart pulse charging with two charging modes:
Quick charging when battery is not fully charged,
trickle charging when battery is 90% fully charged. |
charging
current |
15A at normal line and normal temperature, 25A MAX |
Average
charging
voltage for
each battery |
Quick charging mode:14V
maximum: Trickle charging mode:13.2V ~ 13.9V
adjustable with the remote set-up software. |
|
Protection |
Discharge, overcharge, and overload protection |
3.Communications Management
|
Control panel |
LCD :UPS status, I/P&O/P Voltage Frequency,
Load , Battery Voltage , Temperature , Model
LED :Normal (Green), Warning (Yellow), Fault (Red) |
|
Audible alarm |
Battery Mode : Beeping every 4 seconds
Low Battery : Beeping every second
Overload : Beeping twice per second |
Cooling fan
control |
Auto on / off, controlled by temperature &
operation mode |
Operating
Temperature |
Up to 1500 meters:0℃ to 40℃ (32℉ to 104℉) |
Transit/storage
Temperature |
-20℃ to 55℃ |
Relative
Humidity |
0 - 95% non condensing |
Operating
Altitude |
0 ~ 3000 meters |
|
Audible noise |
≦40 dBA at 1M |
Safety
Markings |
CE/FCC |
|
EMC |
Class B, EN50091-2, FCC part15, IEC1000-2-2 |
Quality
control
system |
ISO 9001 |
4.Environmental and Safety Physical
Size
(H×D×W) Unit / Shipping |
600-1000w
|
1200-1500w |
2000-4000w |
5000-10000w |
375*130*190
(mm*mm*mm) |
452*192*338
(mm*mm*mm) |
500*260*455
(mm*mm*mm) |
570*260*750
(mm*mm*mm) |
Weight:
Net / Gross
(kg) |
6.5/
15.6
|
13.2/
29
|
17/
19.7
|
24.2/
26.9
|
27.4/
30.1
|
29.5/
33.2
|
33/
35.7
|
35/
49
|
41/
55
|
53/
67
|
|
|
Packing |
standard export package ;Neutral packing |
|
