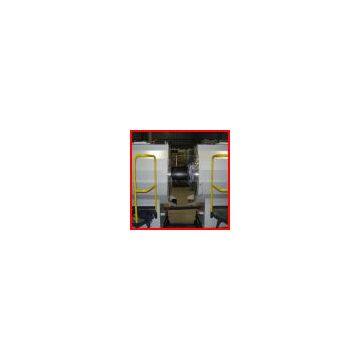

125mm large diameter plastic pipe extrusion line
Negotiable
/ Set
1 Set(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
350kg/h ,90-250mm diameter drip irrigation pipe production line
-
400mm large diameter plastic pe pipe production line
-
MAX 630mm 250-400kg/h larger diameter plastic pipe extrusion machine
-
20-63mm3.5 million meters per year ppr pipe machine
-
900kg/h ,500-800mm double wall concrete pipe machine
-
90-165mm diameter single wall corrugated pipe production line
Product Details
| Brand Name | xintain | Place of Origin | China | |
| Model Number | SJGF125 |
Product Description
HDPE large diameter plastic pipe production line is mainly used to machining and manufacturing for PE plasric pipe, and GF series tube auxiliary eqiupments production line can also use to process other plastic. Extruder and GF series tube auxiliary equipments production line take the features of advanced, reliable and applied together, and provide strong certification for high quality plastic tube for customers.
technological flow chart:
drying feeding--main extruder and mark color extruder---head mould---vacuum molding---thickness finder(can be choosen by self)----vacuum calibration tank---spray cooling tank---printer--haul-offs---cutter---stacker
Main technical parameters:
| model | SJGF75 | SJGF125 | SGJF250 | SJGF630 |
| MAx pipe diameter | 75mm | 125mm | 250mm |
630mm |
| main frame | SJ65/30 | Sj75/30 | SJ90/30 | SJ120/33 |
| total power | 60kw | 75kw | 160kw | 260kw |
| motor type | direct cuurent model | direct cuurent model | direct cuurent model |
direct cuurent model |
| MAX output | 90kg/h | 160kg/h | 300kg/h | 600kg/h |
| hauling speed | 0.5-8m/min | 0.3-4m/min | 0.2-2m/min | 0.1-1m/min |
| MAX traction | 10000N | 15000N | 30000N | 50000N |
| cutting type | disc type cutter | disc type cutter | disc type cutter | disc type cutter |
| dimesion | 22000X2000X2000mm | 24000X2100X2100mm | 30000X2300X2300 mm | 38000X2500X23 |
