1000mm width PVC profile machine
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | xintian | Place of Origin | China | |
| Model Number | XTXC1000 |
Product Description

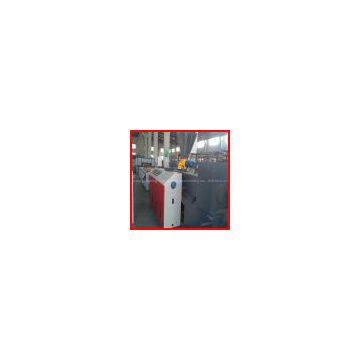

pvc profile machine
features:
PVC proile extrusion line is mainly used at pvc door, window profile, window sill, multi-holes cable pipe extrusion.According to different products shapes, we can choose different conical double-screw extruders, and vacuum calibrating tables, haul-off device, cutting device, stacker and soon.
according to different moulds, the vacuum calibrating table can be choosen 4m, 6m, 8m etc. size.
main technical parameters:
| models | YF1000 |
| extruder | SJZ92/188 |
| capacity | 750kg/h |
| MAX width | 1000mm |
| hauling speed | 120mm |
| hauling force | 4KN |
| hauling speed |
0-2.5m/min |
| down stream power |
40kw |
All models:
| models | YF108 | YF180 | YF240 | YF300 | YF400 | YF600 | YF1000 |
| MAx width | 108mm | 180mm | 240mm | 300mm | 400mm | 600mm | 1000mm |
| hauling height | 150mm | 150mm | 150mm | 1560mm | 150mm | 120mm | 120mm |
| hauling force | 2Kn | 2kn | 2kn | 2kn | 3kn | 3kn | 4kn |
| hauling speed | 0-6m/min | 0-5m/min | 0-5m/min | 0-5m/min | 0-5m/min | 0-3.5m/min | 0-2.5m/min |
| down stream power | 9.9kw | 18.7kw | 27.5kw | 31kw | 35kw | 35kw | 40kw |
