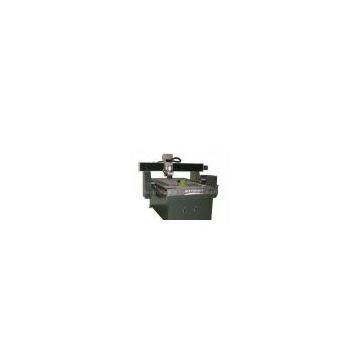

High Efficiency 800mm900mm CNC Wood Engraving Machines

Model

CTE?8090A

CTE?1212A

CTE?1218A

CTE?1225A

Table?size(mm2)

900×1270

1300×1725

1300×2325

1300×2925

X.Y.Z?working?area(mm3)

800×900×90

1200×1200×100

1200×1800×100

1200×2400×100

Max?rapid?traverse

10m

12m

12m

12m

(mm/min)

Max?engraving?

speed(mm/min)

8m

10m

10m

10m

Mechanical?resolution

0.05mm

Repeatability?resolution

0.05mm

Max?feeding?height

100mm

130mm

Motor?driver

Micro?-?step

Power?consumption/

300

without?spindle(w)

Spindle/clamp(KW)

1.2?KW/ф6, ф3.175

1.5?KW/??????ф6, ф3.175

2.2?KW/?ф6, ф3.175

rotation?speed(rpm)

600-24000

controller

DSP?100HZ

Software?working

WINDOWS98/2000

interface

USB

Protocol

3D?protocol(HP-GL, G-code)

Memory?storage

32M?flash?memory

Operation?environment

temperature:+5℃~+35℃;relative?humidity:30%-7

Power?voltage

AC220V±10%?50HZ

Weight(KG)

260

550

680

810

Dimension(mm3)

1405×1151×1200

1825×1550×1250

2425×1550×1250

3025×1550×1250
