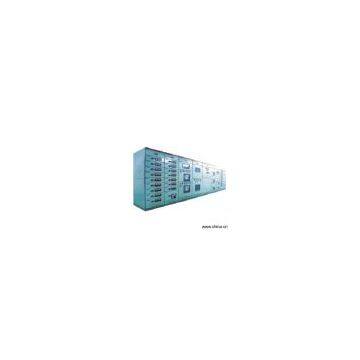

Sell Low Voltage Withdrawable Switchgear

Model No.:GCK
Product Origin:China
Brand Name:Tellhow
Price Terms:
Payment Terms:
Certification:
Description:General introduction: Series of GCK products is a combined type of low voltage complete switch plants produced by our company with advanced world standard, it can satisfy with the requirement of distributing power in every respects. The plants have advantages such as safe and reliable, simple installation, convenience operation and maintenance, easy expand and amend. It can apply to different array, different collocate, different dispose. Characteristics: 1) Frame adopts sheet-steel. modulus is 20mm. Combination structure, flexible installation, good rigidity, light weight 2) Every function unit disconnects each other .each feeder unit can contain up to 18 panels 3) Connect BAS to monitor power system because of having advanced intelligent power analyzed meters 4) Beautiful exterior, small area 5) Hold advanced actively compensating device Major technical parameters: 1) Standard: IEC60439-1, GB7251.1-1997 JB/T9661-1999 2) Rated working voltage: AC 380V 3) Rated insulating voltage: AC 660V 4) Rated working current: up to 3200A 5) Rated short-time withstand current: 50kA 80kA 6) Enclosure degree of protection: IP30
