low power | wireless communication module,SZ05-RS232,wireless datasheet

Place of Origin	China
Model Number	SZ05-RS232

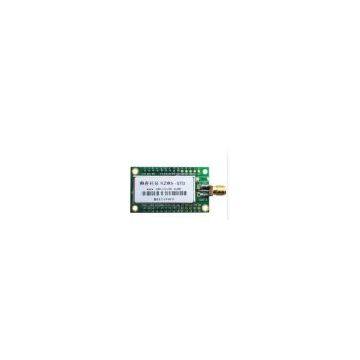

Shuncom SZ05-ADV-1 Zigbee wireless module had been widely applied in industry wireless monitoring communication, such as wireless sensor data acquisition, smart home, internet of things, wireless streetlight control, smart grid, wireless automatic meter reading, wireless automatic traffic. Technical parameters network Transmission distance: 2000m at sight Network topology: Star, tree, link and mesh Node type: coordinator, router or end device (can be set) Maximal data packet: 100 bytes Data interface: RS232 Serial Signal: TxD , RxD, GND Baud rate: 1200~115200bps (optional) Serial parity: None, Even, Odd Data bit: 7 or 8 Parity bit: 1 Modulation model: DSSS Direct Spread Spectrum Frequency range: 2.045GHz~2.480GHz Wireless channels: 16 Receiver sensitivity: -105dbm Transmit power output: 25dBm Antenna: SMA or PCB Conflict prevention: CSMA-CA and CSMA-CA of GTS Power supply: DC 5V Peak current: 250mA Average current: 70mA working temperature: -40℃-85℃ Storage temperature : -55℃-125℃ Size: 4.8cm*2.7cm (Length*width) Notes Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer\\'s responsibility.
