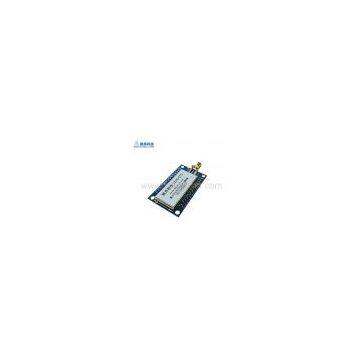

2.4G wireless module SZ05-Rs485- STD-SMA for industrial automation

Place of Origin	China
Model Number	SZ05-Rs485- STD-SMA

Shuncom SZ05-STD-SMA-RS232 the embedded wireless serial communication module, using the ZIGBEE wireless technical, is compliance with the industrial standards. It has advantages of long communication distance, strong anti-jamming, flexible network to make sure transparent data transmission among many devices with self-organizing star, line and mesh network topology. Wireless network Transmission distance: 200m at sight Network topology: Star, tree, link and mesh Maximal data packet: 100 bytes Node type: coordinator, router or end device (can be set) Data interface Data interface: RS232/ TTL Serial Signal: TxD , RxD, GND Baud rate: 1200~115200bps (optional) Serial parity: None, Even, Odd Data bit: 7 or 8 Parity bit: 1 Transceiver: Modulation model: DSSS Direct Spread Spectrum Frequency range: 2.045GHz~2.480GHz Wireless channels: 16 Receiver sensitivity: -92dbm Transmit power output: 3dBm Antenna: SMA Conflict prevention: CSMA-CA and CSMA-CA of GTS Power supply Power supply: DC 5V Peak current: 50mA Average current: 48mA Sleep current: 5uA Working environment: working temperature: -40℃-85℃ Storage temperature : -55℃-125℃ Size: 4.8cm*2.7cm (length*width) Applications: Building control Wireless sensors’ network Wireless industrial monitoring and control Wireless intelligent traffic light control Wireless farming control Environmental monitoring Smart home
