1000 kg Single Mast Climbing Work Platform for Working Height 100 m
- 0 Square Meter / Square Meters per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
SJY 0.3 300 kg Manual Aerial Work Platform Scissor Lift
-
SJY 0.5 4500 / 7500 / 11000 / 12000 mm Mobile Elevated Aerial Work Platform
-
SJY 0.3 Manual Aerial Work Platform for 3000 / 6000 / 9000 / 12000 mm
-
SJY 1-9 1000 Kg Telescopic Aerial Work Platform for Stations, Public Buildings
-
SJY 0.5 500 kg Aerial Work Platform Lift Equipment with Working Height 980mm - 4500mm
-
AC 220V 380V Electric Scissor Lift Aerial Work Platform with 1750 - 12000 mm
Product Details
Brand Name | SHENXI | Place of Origin | China | |
Model Number | STC100 |
Product Description
Certification:CE & SGS

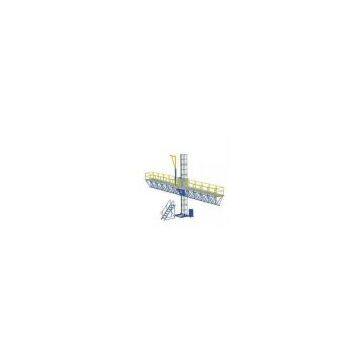

1000 kg Single Mast Climbing Work Platform for Working Height 100 m
Descrition:
Mast climbing work platform is Shenxi's newly-researched and designed aerial work equipment, which adopts the latest technological advances and develops on the basis of traditional suspended access platform. It embodies lots of superior features and does play an indispensable part in large-scale construction work at height, especially in worksites where the suspending mechanisms are unable to install.
The main parts of? Mast climbing work platform can be interchanged with building hoist such as mast sections, rack, pinion, reducing device and so on. And its width and length can be changed according to requirement. It is requisite equipment in construction job. Additionally. It is no need for foundation so that it is easy to change the working site
Specifications:
Single Mast |
Double Mast |
||
Rated Capacity |
1000 kg |
1700 kg |
|
Rated Lifting Speed |
8.3 m/min |
||
Max. Working Height |
100 m |
||
Max. Height of Stand-alone Installation |
7.5 m |
||
Length of Platform |
8.67 m |
20.34 m |
|
BasicWidth of Platform |
1.5 m |
||
Max.Width of Platform |
2.5 m |
||
Size of Standard Section??????????????????????? |
1508×500×500 mm |
||
Motor |
Type |
YZZ 132 S1-4 |
|
Power |
2×5.5 kW |
4×5.5 kW |
|
Rated Rotation Speed |
1400 r/min |
||
Rated current |
13.5 A |
||
Brake |
Brake Torque |
100 N.m |
|
Exciter Voltage |
DC 195 V |
||
Reducer |
Type |
TU 65 C/125-63 |
|
Transmission Ratio |
1:63 / 1300 N.m |
||
Power Supply |
3P, 380V, 50Hz |
||
Total Weight(H100m) |
8724 kg |
17734 kg |
Competitive Advantage:
1.with overload
2.with balance device
3.moving synchronize device
4.with anti-falling safety device
5.with constant speed safety device
6.with hand-operation landing equipment
