Product Details
Brand Name | SHENXI | Place of Origin | China | |
Model Number | SJY-X |
Product Description
Certification:CE & SGS

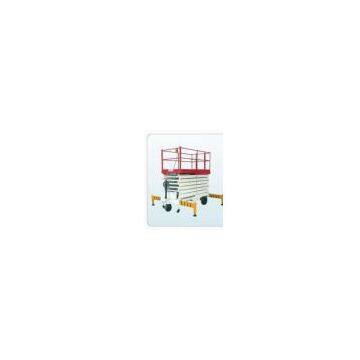

380V / 50Hz 300 kg Industrial Self Propelled Aerial Work Platform
Descrition:
???? The cylinder aerial working platform is used for lifting vertically by multi-hydraulic cylinders, which is of high strength materials and good mechanic property. Together with its tower-shaped safety guards, this platform is much more stable. Even in the place as high as 20 meters above the ground, it still features the excellent balance performance.
Application: used in factory, hotel, mansion, store, station, airport, stadium, etc.
Main Usages: for aerial work such as the installation and maintenance for electric networks, lighting equipments, overhead pipelines and the single work for aerial cleaning
Power options: AC 220V (standard configuration), AC 380V power supply, DC power supply and manual pump.
??? It is a kind of hydraulic work platform with a scissor structure, mainly used for facilitating work at height and designed to enhance productivity in the workplace.
Such kind of aerial work platform can be powered by chargeable battery and is able to walk and turn directions at will without being directed by any person.
All models of scissors aerial work platform can be changed into self-propelled hydraulic lift table if necessary.
Key Features of Self-propelled Hydraulic Lift Table
-flexibility in moving and installing
-portable battery-powered, optional electricity source
-made of high strength steel, solid enough to carry huge load
-exceptional maneuverability and working efficiency
-completely comply with the safety rules and regulations
Specifications:
Model |
Rated load |
Max height |
Min height |
Dimension of |
Lifting time |
Power of motor |
Voltage |
Walking speed m/min |
Weight of whole kg |
SJY-X-0.3-6 |
300 |
6000 |
1100 |
1800*900 |
35 |
1.5 |
DC-24V |
10 |
1250 |
SJY-X-0.5-6 |
500 |
6000 |
1100 |
1800*900 |
38 |
1.5 |
DC-24V |
10 |
1250 |
SJY-X-0.3-9 |
300 |
9000 |
1550 |
2000*1000 |
72 |
1.5 |
380V/50Hz |
10 |
1200 |
SJY-X-0.5-9 |
500 |
9000 |
1550 |
2000*1000 |
81 |
1.5 |
380V/50Hz |
10 |
1300 |
SJY-X-0.3-11 |
300 |
11000 |
1600 |
2100*1200 |
73 |
2.2 |
380V/50Hz |
10 |
1320 |
SJY-X-0.5-11 |
500 |
11000 |
1600 |
2100*1200 |
